Application:
Fire Rated 110°WS52W cable with low smoke, halogen-free, low-toxicity and non-corrosive emissions — ideal for mains, submains and fire protection systems, and certified with a 2-hour WS52W fire rating. It is constructed with 0.6/1kV CU/MICA/X-HF-110/HFS-110-TP with a red sheath, making it ideal for essential service systems that need to maintain circuit integrity when exposed to fire.

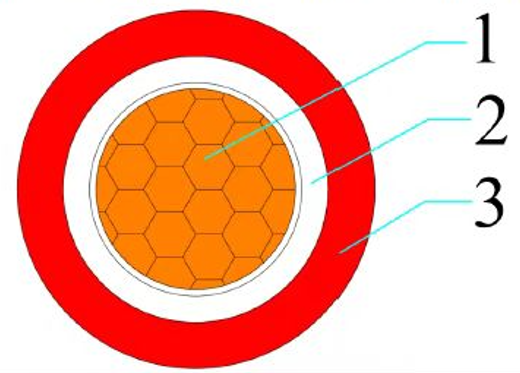

Construction:
Conductor: Class 5 Copper Conductor
Barrier:Mica Tape
Insulation: X-HF-110 Low Smoke Zero Halogen
Wrapping Tape: Flame Retardant Tape(if necessary)
Sheath: HFS-110-TP
Technical Parameters:
Single Core
| Nom.Cross Section | Nom.Insulation Thickess | Nom. Sheath Thickness | Overall Diameter | Weight |
| mm | mm | mm | mm | KG/KM |
| 10 | 0.7 | 1.4 | 9.7 | 160 |
| 16 | 0.7 | 1.4 | 10.9 | 225 |
| 25 | 0.9 | 1.4 | 12.6 | 320 |
| 35 | 0.9 | 1.4 | 13.8 | 425 |
| 50 | 1.0 | 1.4 | 15.4 | 575 |
| 70 | 1.0 | 1.5 | 17.7 | 790 |
| 95 | 1.1 | 1.6 | 19.4 | 1015 |
| 120 | 1.2 | 1.6 | 21.2 | 1270 |
| 150 | 1.4 | 1.7 | 23.6 | 1575 |
| 185 | 1.6 | 1.8 | 25.9 | 1905 |
| 240 | 1.7 | 1.9 | 29.1 | 2475 |
| 300 | 1.8 | 20 | 31.9 | 3050 |
| 400 | 2.0 | 2.1 | 35.7 | 3900 |
| 500 | 2.2 | 23 | 39.7 | 5025 |
| 630 | 2.4 | 2.4 | 43.0 | 6590 |
Multi-Cores
| Nom.Cross Section | No.of Cores | Nom.Insulation Thickess | Nom. Sheath Thickness | Overall Diameter | Weight |
| mm2 | No. | mm | mm | mm | KG/KM |
| 1.5 | 2+E | 0.7+0.7E | 1.8 | 12.4 | 175 |
| 2.5 | 2+E | 0.7+0.7E | 1.8 | 13.5 | 224 |
| 4 | 2+E | 0.7+0.7E | 1.8 | 14.2 | 261 |
| 6 | 2+E | 0.7+0.7E | 1.8 | 15.1 | 310 |
| 10 | 2+E | 0.7+0.7E | 1.8 | 16.8 | 410 |
| 16 | 2+E | 0.7+0.7E | 1.8 | 18.8 | 560 |
| 25 | 2+E | 0.9+0.7E | 1.8 | 22.5 | 790 |
| 35 | 2+E | 0.9+0.7E | 1.8 | 24.6 | 1025 |
| 1.5 | 3+E | 0.7+0.7E | 1.8 | 13.4 | 211 |
| 2.5 | 3+E | 0.7+0.7E | 1.8 | 14.6 | 272 |
| 4 | 3+E | 0.7+0.7E | 1.8 | 15.7 | 332 |
| 6 | 3+E | 0.7+0.7E | 1.8 | 16.7 | 402 |
| 10 | 3+E | 0.7+0.7E | 1.8 | 18.6 | 540 |
| 16 | 3+E | 0.7+0.7E | 1.8 | 20.8 | 750 |
| 25 | 3+E | 0.9+0.7E | 1.8 | 24.2 | 1080 |
| 1.5 | 4+E | 0.7+0.7E | 1.8 | 14.5 | 246 |
| 2.5 | 4+E | 0.7+0.7E | 1.8 | 15.9 | 323 |
| 4 | 4+E | 0.7+0.7E | 1.8 | 17.0 | 397 |
| 6 | 4+E | 0.7+0.7E | 1.8 | 18.2 | 490 |
| 10 | 4+E | 0.7+0.7E | 1.8 | 20.4 | 665 |
| 16 | 4+E | 0.7+0.7E | 1.8 | 22.9 | 935 |
| 25 | 4+E | 0.9+0.7E | 1.8 | 26.8 | 1360 |
| 35 | 4+E | 0.9+0.7E | 1.8 | 29.9 | 1795 |
| 50 | 2+E | 1.0+0.7E | 1.9 | 28.0 | 1350 |
| 50 | 4+E | 1.0+0.7E | 1.9 | 33.8 | 2420 |
| 70 | 4+E | 1.1+0.9E | 2.1 | 39.4 | 3430 |
| 95 | 4+E | 1.1+0.9E | 2.3 | 43.7 | 4500 |
