Application:

The Type 2S Mining Cables are highly versatile, rubber-insulated solutions designed for dynamic applications, including the internal wiring of machines and inter-machine connections. Renowned for their superior flexibility and durability, they are also a preferred choice for specialized longwall lighting circuits. These cables are configurable with various cores, such as dedicated pilot, control, or twisted pair and screened cores, ensuring both reliable power delivery and stable signal transmission.

Construction:

Conductors: Stranded tinned annealed copper conductor.

Insulation: EPR.

Filling: Elastomer centre filler.

Pilot/Control Cores: EPR covered and composite screened flexible stranded tinned copper conductor.

Individual/Collectively Composite Screen (earth conductor): Tinned annealed copper braiding interwove with

polyester yarn.

Sheath: Heavy duty CPE sheath.

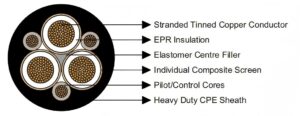

                          Type 2S Individually Screened

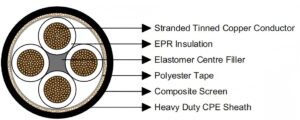

Type 2S Collectively Screened

Technical Parameters: 4个表格

Number of Core	Nominal Conductor Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor			Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
				Strand Size	Area of Screen	Number of Pilots	Strand Size	Thickness of Covering
	mm²	No/mm	mm	mm	mm²		No/mm	mm	mm	mm	kg/100m
	Type 2S 1.1/1kV Individually Screened
3	10	77/0.40	1.2	0.2	7.9	3	一	一	1.8	22.1	69
4	10	77/0.40	1.2	0.2	7.9	4	一	一	1.8	23.0	93
2	16	126/0.40	1.2	0.2	9.0	2	一	一	1.8	22.0	81
3	16	126/0.40	1.2	0.2	9.0	3	一	一	1.8	23.4	100
4	16	126/0.40	1.2	0.2	9.0	4	一	一	1.8	26.8	135
3	10	77/0.40	1.2	0.2	7.9	3	30/0.20	1.0	1.8	22.5	87
2	16	126/0.40	1.2	0.2	9.0	2	30/0.20	1.0	1.8	22.7	88
3	16	126/0.40	1.2	0.2	9.0	3	30/0.20	1.0	1.8	27.7	130
3	25	209/0.40	1.4	0.2	11.3	3	30/0.20	1.0	1.8	29.2	165
3	35	285/0.40	1.4	0.2	12.4	3	30/0.20	1.0	1.8	31.6	200
3	50	380/0.40	1.6	0.25	17.5	3	30/0.20	1.0	1.9	36.1	260

Type 2S 1.1/1kV Individually Screened

                    Type 2S 1.1/1kV Individually and Collectivly Screened

Number of Core	Nominal Conductor Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor			Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
				Strand Size	Area of Screen	Number of Pilots	Strand Size	Thickness of Covering
	mm²	No/mm	mm	mm	mm²		No/mm	mm	mm	mm	kg/100m
	Type 2S 1.1/1kV Individually and Collectivly Screened
30	1.5	30/0.25	1.0	0.3	14.0	一	一	一	1.9	32.6	170

                     Type 2S 3.3/3.3KV Individually Screened

Number of Core	Nominal Conductor Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor			Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
				Strand Size	Area of Screen	Number of Pilots	Strand Size	Thickness of Covering
	mm²	No/mm	mm	mm	mm²		No/mm	mm	mm	mm	kg/100m
	Type 2S 3.3/3.3KV Individually Screened
3	10	77/0.40	3.0	0.2	11.3	3	30/0.25	1.0	1.8	28.9	130
3	16	126/0.40	3.0	0.2	12.4	3	30/0.25	1.0	1.8	31.3	160
3	25	209/0.40	3.0	0.2	13.6	3	30/0.25	1.0	1.9	34.8	210
3	35	285/0.40	3.0	0.2	15.3	3	30/0.25	1.0	2.0	37.8	250
3	50	380/0.40	3.0	0.2	17.0	3	30/0.25	1.0	2.1	41.3	305
3	70	203/0.67	3.0	0.3	30.5	3	30/0.25	1.0	2.2	46.8	415
3	95	259/0.67	3.0	0.3	30.5	3	30/0.25	1.0	2.3	49.6	490
3	120	336/0.67	3.0	0.4	47.5	3	30/0.25	1.0	2.5	55.0	620

                  Type 2S 1.1/1kV Collectively Screened

Number of Core	Nominal Conductor   Area	Strand Size	Insulation Thickness	Core Screen		Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
				Strand Size	Area of Screen
	mm²	No/mm	mm	mm	mm²	mm	mm	kg/100m
Type 2S 1.1/1kV Collectively Screened
2	1.5	30/0.25	1.0	0.20	5.3	1.8	14.7	17
4	1.5	30/0.25	1.0	0.20	12.1	1.8	19.9	26
6	1.5	30/0.25	1.0	0.20	22.6	1.8	25.7	35
16	1.5	30/0.25	1.0	0.25	113.1	1.8	47.1	71
20	1.5	30/0.25	1.0	0.25	159.0	1.8	53.2	82
