Type 260 1.1/11KV Mining Cable

High-quality materials
International standards compliant
Durable construction
Long service life
Quality tested
Custom lengths available
Request Quotation
Overview

Application

Engineered for the most demanding environments, the Type 260 Mining Cable is a very heavy-duty, highly robust, screened, and flexible power cable. Compliant with AS/NZS 1802, it is designed to serve as a principal electrical artery in underground and open-cut mining operations.

Applicable Standards

  • AS/NZS 1802:2003
  • AS/NZS 1125
  • AS/NZS 3808
  • AS/NZS 5000.1

Construction

  • 3×Conductors: Flexible stranded tinned annealed copper conductor.
  • Conductor Screen: Semi-conductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
  • Insulation: EPR.
  • Insulation Screen: Semi-conductive elastomer.
  • Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
  • Cradle Separator: Semi-conductive PCP.
  • 3×Interstitial Pilot: EPR covered flexible stranded tinned copper conductor.
  • Inner Sheath: PCP sheath. CPE/CSP sheath can be offered upon request.

Structure Diagram

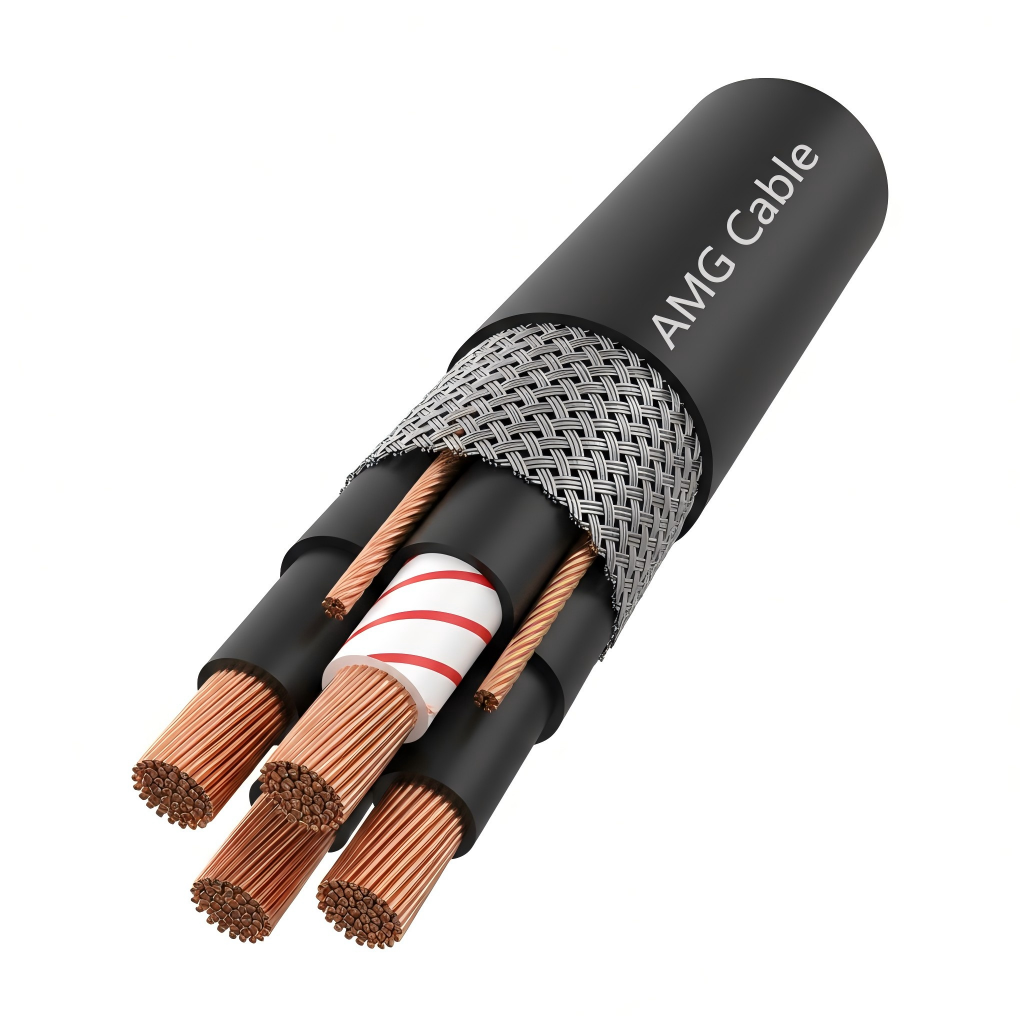

Cable Structure Diagram

Technical Parameters

Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Pliable Thickness of Sheath Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Armour Size Inner Outer Nominal Overall Diameter Nominal Weight
mm² No/mm mm No/mm mm² No/mm mm No/mm mm mm mm kg/100m
Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1 Type 260.1
6 84/0.30 1.5 7/0.25 7.2 18/0.30 1.0 7/0.45 2.0 3.8 36.9 230
10 77/0.40 1.5 7/0.25 8.6 27/0.30 1.0 7/0.45 2.0 3.8 39.5 265
16 126/0.40 1.6 7/0.25 9.6 42/0.30 1.0 7/0.90 2.5 4.0 46.5 410
25 209/0.40 1.6 7/0.25 11.3 66/0.30 1.2 7/0.90 2.5 4.3 50.4 495
35 285/0.40 1.6 7/0.25 12.4 90/0.30 1.2 7/0.90 2.5 4.6 53.8 576
50 380/0.40 1.7 7/0.25 14.1 120/0.30 1.2 7/0.90 2.5 5.0 58.4 679
70 203/0.67 1.8 7/0.25 16.5 39/0.67 1.2 7/0.90 2.5 5.4 64.6 837
95 259/0.67 2.0 7/0.25 18.2 39/0.67 1.2 7/0.90 3.5 6.0 71.4 1003
120 336/0.67 2.1 7/0.25 20.3 42/0.67 1.4 7/0.90 3.5 6.4 77.2 1176
150 427/0.67 2.3 7/0.25 22.3 54/0.67 1.4 7/0.90 3.5 6.9 83.0 1372
185 518/0.67 2.5 7/0.30 30.2 63/0.67 1.4 7/0.90 3.5 7.4 90.0 1610
240 672/0.67 2.8 7/0.30 33.6 77/0.67 1.6 7/1.25 4.5 8.2 103.0 2150
300 854/0.67 3.0 7/0.40 50.1 98/0.67 1.6 7/1.25 4.5 8.8 112.1 2590
Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Pliable Thickness of Sheath Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Armour Size Inner Outer Nominal Overall Diameter Nominal Weight
mm² No/mm mm No/mm mm² No/mm mm No/mm mm mm mm kg/100m
Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3 Type 260.3
16 126/0.40 3.0 7/0.25 13.1 42/0.30 1.4 7/0.90 2.5 5.3 56.9 566
25 209/0.40 3.0 7/0.25 14.8 66/0.30 1.4 7/0.90 2.5 5.6 60.8 661
35 285/0.40 3.0 7/0.25 15.8 90/0.30 1.4 7/0.90 3.5 5.9 66.3 779
50 380/0.40 3.0 7/0.25 17.2 120/0.30 1.4 7/0.90 3.5 6.3 70.4 886
70 203/0.67 3.0 7/0.25 18.6 39/0.67 1.4 7/0.90 3.5 6.6 75.3 1044
95 259/0.67 3.0 7/0.25 20.3 39/0.67 1.4 7/0.90 3.5 7.1 78.9 1156
120 336/0.67 3.0 7/0.30 27.2 42/0.67 1.6 7/0.90 3.5 7.4 84.7 1350
150 427/0.67 3.0 7/0.40 39.6 54/0.67 1.6 7/1.25 4.5 7.8 95.0 1779
185 518/0.67 3.0 7/0.40 42.2 63/0.67 1.8 7/1.25 4.5 8.2 100.4 1990
240 672/0.67 3.0 7/0.40 46.6 77/0.67 1.8 7/1.25 4.5 8.8 107.3 2300
300 854/0.67 3.0 7/0.50 63.2 98/0.67 1.8 7/1.25 4.5 9.4 115.4 2710
Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Pliable Thickness of Sheath Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Armour Size Inner Outer Nominal Overall Diameter Nominal Weight
mm² No/mm mm No/mm mm² No/mm mm No/mm mm mm mm kg/100m
Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6 Type 260.6
16 126/0.40 5.0 7/0.25 17.2 42/0.30 1.4 7/0.90 3.5 6.4 70.1 796
25 209/0.40 5.0 7/0.25 18.6 66/0.30 1.4 7/0.90 3.5 6.7 74.0 897
35 285/0.40 5.0 7/0.25 18.6 90/0.30 1.6 7/0.90 3.5 7.0 77.4 990
50 380/0.40 5.0 7/0.25 21.3 120/0.30 1.6 7/0.90 3.5 7.3 81.2 1102
70 203/0.67 5.0 7/0.25 23.4 39/0.67 1.6 7/1.25 4.5 7.7 90.7 1456
95 259/0.67 5.0 7/0.30 29.2 39/0.67 1.6 7/1.25 4.5 8.1 94.8 1610
120 336/0.67 5.0 7/0.30 31.7 42/0.67 1.8 7/1.25 4.5 8.5 100.2 1807
150 427/0.67 5.0 7/0.40 45.7 54/0.67 1.8 7/1.25 4.5 8.9 106.2 2080
185 518/0.67 5.0 7/0.40 48.4 63/0.67 1.8 7/1.25 4.5 9.3 111.5 2300
240 672/0.67 5.0 7/0.40 52.8 77/0.67 1.8 7/1.25 4.5 9.9 118.4 2630
300 854/0.67 5.0 7/0.50 71.5 98/0.67 1.8 7/1.25 4.5 10.4 126.3 3060
Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Pliable Thickness of Sheath Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Armour Size Inner Outer Nominal Overall Diameter Nominal Weight
mm² No/mm mm No/mm mm² No/mm mm No/mm mm mm mm kg/100m
Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11 Type 260.11
25 209/0.40 7.6 7/0.25 23.7 66/0.30 2.0 7/1.25 4.5 8.1 92.7 1380
35 285/0.40 7.6 7/0.30 30.2 90/0.30 2.0 7/1.25 4.5 8.4 96.7 1528
50 380/0.40 7.6 7/0.30 31.7 120/0.30 2.0 7/1.25 4.5 8.7 100.6 1664
70 203/0.67 7.6 7/0.30 34.1 39/0.67 2.0 7/1.25 4.5 9.1 105.8 1867
95 259/0.67 7.6 7/0.40 47.5 39/0.67 2.0 7/1.25 4.5 9.6 110.7 2080
120 336/0.67 7.6 7/0.40 51.0 42/0.67 2.2 7/1.25 4.5 9.9 115.8 2290
150 427/0.67 7.6 7/0.40 53.7 54/0.67 2.2 7/1.25 4.5 10.3 120.5 2510
185 518/0.67 7.6 7/0.40 57.2 63/0.67 2.2 7/1.25 4.5 10.7 125.9 2750
