Type 245 1.1/6.6 kV Mining Cable

Home› Products› Type 245 1.1/6.6 kV Mining Cable

Type 245 1.1/6.6 kV Mining Cable

High-quality materials
International standards compliant
Durable construction
Long service life
Quality tested
Custom lengths available
Request Quotation
Overview

Application

Engineered for the most demanding environments, the Type 245 mining cable is a heavy-duty, screened, flexible trailing cable designed for dynamic and strenuous applications in underground mining, primarily in coal and metalliferous mines.

Applicable Standards

  • AS/NZS 1802:2003
  • AS/NZS 1125
  • AS/NZS 3808
  • AS/NZS 5000.1

Construction

  • 3×Conductors: Flexible stranded tinned annealed copper conductor.
  • Conductor Screen: 1.1/1.1kV – polyester barrier tape, ≥3.3/3.3kV – polyester barrier tape and extruded semi-conductive tape.
  • Insulation: EPR.
  • Insulation Screen: Semi-conductive tape.
  • Cradle Separator: Semiconductive PCP.
  • Overall Core Screen: Semiconductive PCP filling and covering.
  • 3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.
  • 3×Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor.
  • Textile Reinforcement: Open-weave braid reinforcement.
  • Sheath: Heavy duty PCP sheath.

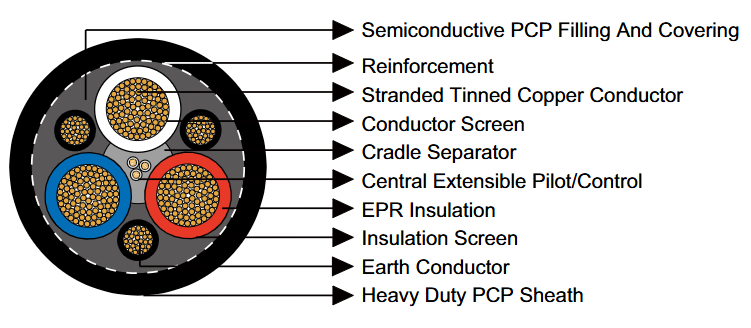

Structure Diagram

Cable Structure Diagram

Technical Parameters

Nominal Conductor Area Strand Size Insulation Thickness Earth Conductor Earth Conductor Pilot Conductor Pilot Conductor Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Thickness of Covering Strand Size Thickness of Covering Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Thickness of Covering Strand Size Thickness of Covering Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
mm2 No./mm mm No./mm m’m No./mm m’m mm mm KG/100M
Type 245.1 Type 245.1 Type 245.1 Type 245.1 Type 245.1 Type 245.1 Type 245.1 Type 245.1 Type 245.1 Type 245.1
16 133/0.40 2.0 69/0.25 1.8 28/0.25 0.8 4.1 42.6 235
25 259/0.36 1.6 91/0.25 1.8 28/0.25 0.8 4.2 43.4 269
35 287/0.40 1.6 140/0.25 1.4 28/0.25 0.8 4.4 45.6 315
50 703/0.30 1.7 120/0.30 1.0 28/0.25 0.8 4.8 48.4 390
70 988/0.30 1.8 180/0.30 1.0 28/0.25 0.8 5.1 53.9 501
95 1332/0.30 2.0 150/0.30 1.0 28/0.25 0.8 5.6 60.4 630
120 1702/0.30 2.1 195/0.30 1.2 28/0.25 0.8 6.0 65.5 765
150 2146/0.30 2.3 235/0.30 1.2 28/0.25 0.8 6.3 70.5 915
Nominal Conductor Area Strand Size Insulation Thickness Earth Conductor Earth Conductor Pilot Conductor Pilot Conductor Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Thickness of Covering Strand Size Thickness of Covering Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Thickness of Covering Strand Size Thickness of Covering Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
mm2 No./mm mm No./mm m’m No./mm m’m mm mm KG/100M
Type 245.3 Type 245.3 Type 245.3 Type 245.3 Type 245.3 Type 245.3 Type 245.3 Type 245.3 Type 245.3 Type 245.3
25 259/0.36 3.0 91/0.25 1.5 28/0.25 0.8 5.2 51.1 338
35 287/0.40 3.0 140/0.25 1.0 28/0.25 0.8 5.4 54.5 398
50 703/0.30 3.0 120/0.30 1.0 28/0.25 0.8 5.7 56.8 490
70 988/0.30 3.0 180/0.30 1.2 28/0.25 0.8 6.0 61.2 592
95 1332/0.30 3.0 235/0.30 1.2 28/0.25 0.8 6.4 66.6 739
120 1702/0.30 3.0 300/0.30 1.2 28/0.25 0.8 6.7 71.0 870
150 2146/0.30 3.0 375/0.30 1.2 28/0.25 0.8 7.0 75.2 1028
Nominal Conductor Area Strand Size Insulation Thickness Earth Conductor Earth Conductor Pilot Conductor Pilot Conductor Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Thickness of Covering Strand Size Thickness of Covering Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Thickness of Covering Strand Size Thickness of Covering Thickness of Sheath Incl.SC PCP Layer Nom. Overall Diameter Nominal Weight
mm2 No./mm mm No./mm m’m No./mm m’m mm mm KG/100M
Type 245.6 Type 245.6 Type 245.6 Type 245.6 Type 245.6 Type 245.6 Type 245.6 Type 245.6 Type 245.6 Type 245.6
50 703/0.30 5.0 120/0.30 1.4 28/0.25 0.8 6.7 67.2 635
70 988/0.30 5.0 180/0.30 1.4 28/0.25 0.8 7.0 71.7 755
95 1332/0.30 5.0 235/0.30 1.4 28/0.25 0.8 7.4 77.1 905
120 1702/0.30 5.0 300/0.30 1.4 28/0.25 0.8 7.7 81.3 1050
150 2146/0.30 5.0 375/0.30 1.4 28/0.25 0.8 8.0 85.8 1210
