Type 241 SF 1.1/11KV Ming Cable

Overview Application Standards Construction Structure Parameters Downloads

Overview

Application

Engineered for the most demanding mobile applications, the Type 241 SF (Super Flexible) Mining Cable delivers exceptional performance in harsh mining environments. These cables are specifically designed for situations requiring extremely high flexibility and a minimal bending radius, providing more reliable and durable power transmission where the cable must be repeatedly bent and moved during operation.

Applicable Standards

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Construction

3x Conductors: Flexible stranded tinned annealed copper conductor
Conductor Screen: Semi-conductive compound (≥ 3.3/3.3kV and above)
Insulation: EPR
Insulation Screen: Semi-conductive elastomer
Cradle Separator: Semi-conductive PCP
Overall Core Screen: Semi-conductive PCP filling and covering
3x Interstitial Earth Conductor: Semi-conductive PCP covered flexible stranded tinned copper conductor
1x Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
Textile Reinforcement: Open-weave braid reinforcement
Sheath: Heavy duty PCP sheath (Heavy duty CPE/CSP Optional)

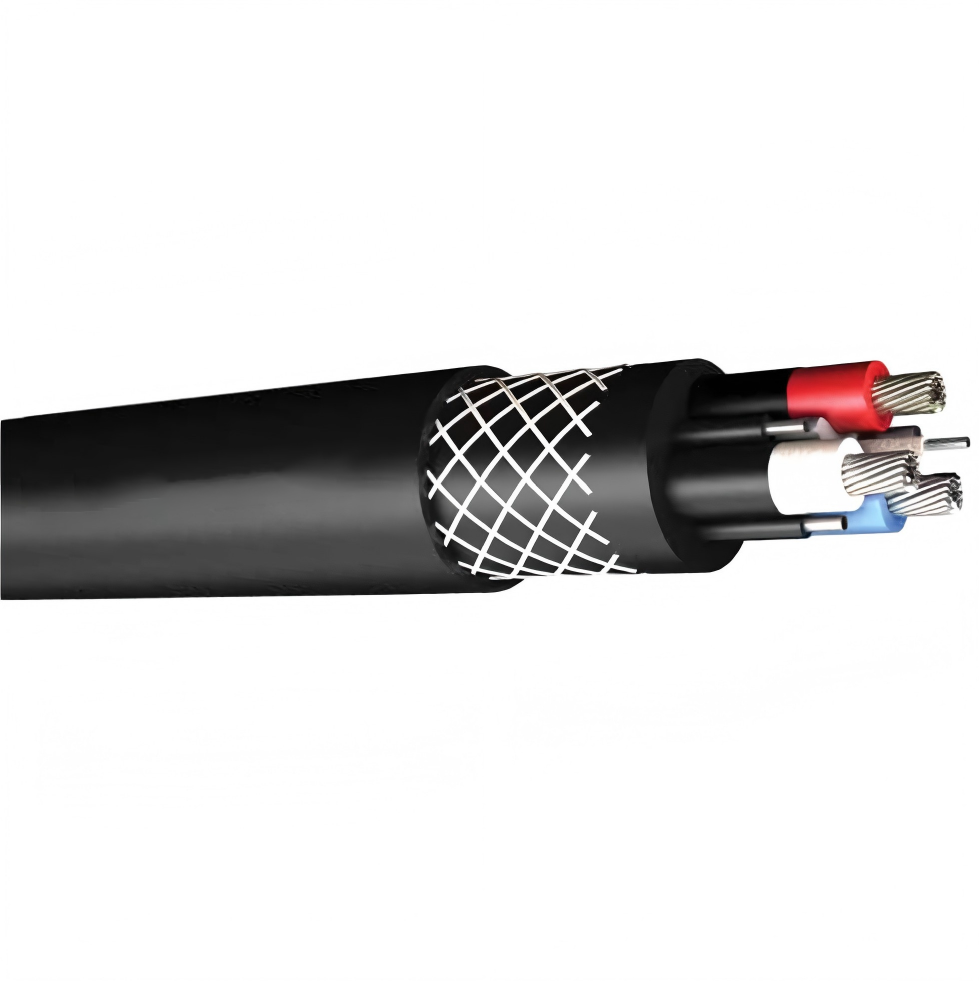

Structure Diagram

Technical Parameters

Nominal Conductor Area	Strand Size	Insulation Thickness	Earth Conductor	Earth Conductor	Pilot Conductor	Pilot Conductor	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
mm	No./mm	mm	Strand Size (No./mm)	Thickness of Covering (mm)	Strand Size (No./mm)	Thickness of Covering (mm)	mm	mm	KG/100M
70	361/0.50	1.8	110/0.40	1.0	40/0.20	0.8	5.3	53.0	485
95	475/0.50	2.0	85/0.40	1.0	40/0.20	0.8	5.8	58.8	595
120	608/0.50	2.1	110/0.40	1.2	40/0.20	0.8	6.3	62.5	715
150	740/0.50	2.3	135/0.40	1.2	40/0.20	0.8	6.7	67.0	840
185	925/0.50	2.5	165/0.40	1.4	40/0.20	0.8	7.3	75.1	1040
240	1221/0.50	2.8	216/0.40	1.4	40/0.20	0.8	8.0	85.7	1340

Nominal Conductor Area	Strand Size	Insulation Thickness	Earth Conductor	Earth Conductor	Pilot Conductor	Pilot Conductor	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
mm	No./mm	mm	Strand Size (No./mm)	Thickness of Covering (mm)	Strand Size (No./mm)	Thickness of Covering (mm)	mm	mm	KG/100M
70	361/0.50	3.0	110/0.4	1.2	40/0.20	0.8	6.4	61.2	590
95	475/0.50	3.0	135/0.40	1.2	40/0.20	0.8	6.8	65.9	710
120	608/0.50	3.0	165/0.40	1.2	40/0.20	0.8	7.2	68.9	820
150	740/0.50	3.0	216/0.40	1.2	40/0.20	0.8	7.6	72.5	940
185	925/0.50	3.0	252/0.40	1.4	40/0.20	0.8	8.0	79.4	1130
240	1221/0.50	3.0	324/0.40	1.4	40/0.20	0.8	8.6	88.3	1420

Nominal Conductor Area	Strand Size	Insulation Thickness	Earth Conductor	Earth Conductor	Pilot Conductor	Pilot Conductor	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
mm	No./mm	mm	Strand Size (No./mm)	Thickness of Covering (mm)	Strand Size (No./mm)	Thickness of Covering (mm)	mm	mm	KG/100M
Type 241.6	Type 241.6	Type 241.6	Type 241.6	Type 241.6	Type 241.6	Type 241.6	Type 241.6	Type 241.6	Type 241.6
70	361/0.50	5.0	110/0.40	1.4	40/0.20	0.8	7.4	72.1	750
95	475/0.50	5.0	135/0.40	1.4	40/0.20	0.8	7.9	77.0	885
120	608/0.50	5.0	165/0.40	1.4	40/0.20	0.8	8.3	79.9	1000
150	740/0.50	5.0	216/0.40	1.4	40/0.20	0.8	8.6	83.3	1130
185	925/0.50	5.0	252/0.40	1.4	40/0.20	0.8	9.0	90.2	1330
240	1221/0.50	5.0	324/0.40	1.4	40/0.20	0.8	9.6	99.1	1640
