Type 241 1.1/11KV Mining Cable

Overview Application Standards Construction Structure Parameters Downloads

Overview

Application

Engineered for the most demanding environments, the Type 241 Mining Cable is a heavy-duty, flexible reeling and trailing cable primarily used in underground mining operations. It is designed to meet stringent safety and performance requirements for powering mobile equipment.

Applicable Standards

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Construction

3x Conductors: Flexible stranded tinned annealed copper conductor
Conductor Screen: Semi-conductive compound (≥ 3.3/3.3kV and above)
Insulation: EPR
Insulation Screen: Semi-conductive elastomer
Cradle Separator: Semi-conductive PCP
Overall Core Screen: Semi-conductive PCP filling and covering
3x Interstitial Earth Conductor: Semi-conductive PCP covered flexible stranded tinned copper conductor
1x Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
Textile Reinforcement: Open-weave braid reinforcement
Sheath: Heavy duty PCP sheath (Heavy duty CPE/CSP Optional)

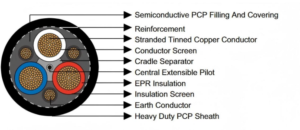

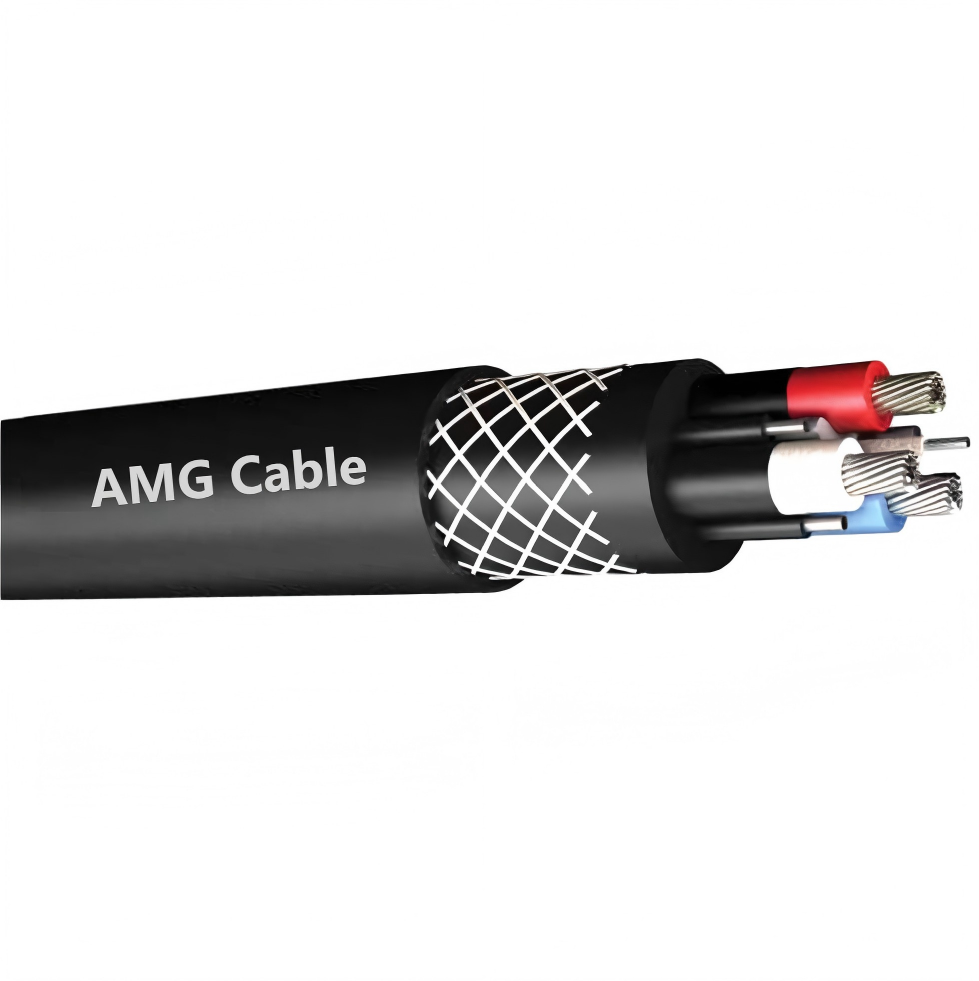

Structure Diagram

Technical Parameters

Nominal Conductor Area	Strand Size	Insulation Thickness	Earth Conductor	Earth Conductor	Pilot Conductor	Pilot Conductor	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
Nominal Conductor Area	Strand Size	Insulation Thickness	Strand Size	Thickness of Covering	Strand Size	Thickness of Covering	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
mm²	No/mm	mm	No/mm	mm	No/mm	mm	mm	mm	kg/100m
Type 241.1	Type 241.1	Type 241.1	Type 241.1	Type 241.1	Type 241.1	Type 241.1	Type 241.1	Type 241.1	Type 241.1
6	84/0.30	1.5	18/0.30	1.0	24/0.20	0.8	3.8	28.5	106
10	77/0.40	1.5	27/0.30	1.0	24/0.20	0.8	3.8	31.1	127
16	126/0.40	1.6	42/0.30	1.0	24/0.20	0.8	3.9	34.1	164
25	209/0.40	1.6	66/0.30	1.0	24/0.20	0.8	4.2	37.9	208
35	285/0.40	1.6	90/0.30	1.0	24/0.20	0.8	4.4	41.2	254
50	380/0.40	1.7	120/0.30	1.0	40/0.20	0.8	4.9	45.9	328
70	203/0.67	1.8	39/0.67	1.0	40/0.20	0.8	5.3	52.2	480
95	259/0.67	2.0	39/0.67	1.0	40/0.20	0.8	5.8	56.7	600
120	336/0.67	2.1	42/0.67	1.2	40/0.20	0.8	6.3	62.7	710
150	427/0.67	2.3	54/0.67	1.2	40/0.20	0.8	6.7	68.3	865
185	518/0.67	2.5	63/0.67	1.4	40/0.20	0.8	7.3	74.9	1030
240	672/0.67	2.8	77/0.67	1.4	40/0.20	0.8	8.0	83.3	1300
300	854/0.67	3.0	98/0.67	1.4	40/0.20	0.8	8.7	91.2	1600

Nominal Conductor Area	Strand Size	Insulation Thickness	Earth Conductor	Earth Conductor	Pilot Conductor	Pilot Conductor	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
Nominal Conductor Area	Strand Size	Insulation Thickness	Strand Size	Thickness of Covering	Strand Size	Thickness of Covering	Thickness of Sheath Including SC PCP Layer	Nominal Overall Diameter	Nominal Weight
mm²	No/mm	mm	No/mm	mm	No/mm	mm	mm	mm	kg/100m
Type 241.3	Type 241.3	Type 241.3	Type 241.3	Type 241.3	Type 241.3	Type 241.3	Type 241.3	Type 241.3	Type 241.3
16	126/0.40	3.0	42/0.30	1.0	24/0.20	0.8	5.0	43.8	249
25	209/0.40	3.0	66/0.30	1.0	24/0.20	0.8	5.3	47.7	315
35	285/0.40	3.0	90/0.30	1.0	24/0.20	0.8	5.6	51.1	376
50	380/0.40	3.0	120/0.30	1.2	40/0.20	0.8	6.0	55.2	450
70	203/0.67	3.0	39/0.67	1.2	40/0.20	0.8	6.4	60.3	576
95	259/0.67	3.0	48/0.67	1.2	40/0.20	0.8	6.8	63.8	675
120	336/0.67	3.0	60/0.67	1.2	40/0.20	0.8	7.2	69.1	810
150	427/0.67	3.0	77/0.67	1.2	40/0.20	0.8	7.6	73.8	952
185	518/0.67	3.0	91/0.67	1.4	40/0.20	0.8	8.0	79.2	1130
240	672/0.67	3.0	112/0.67	1.4	40/0.20	0.8	8.6	86.0	1380
300	854/0.67	3.0	144/0.67	1.4	40/0.20	0.8	9.1	92.6	1660

Downloads

Documents & Certifications

Product DatasheetComing soon
