Application:

The Type 240 Mining Cable (Comply with the AS/NZS 1802 standard) is a heavy-duty, flexible mining power cable, with its primary applications concentrated in the mining industry, particularly in underground coal mining environments.

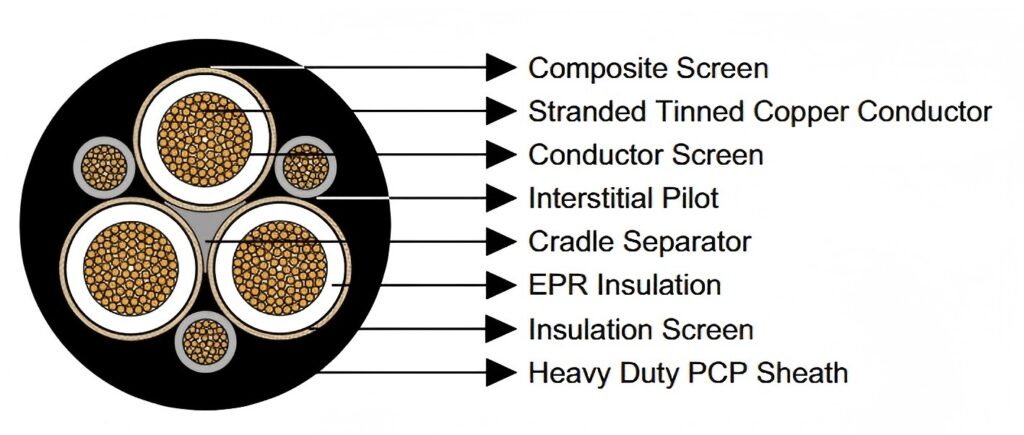

Construction：

3xConductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen: Semi-conductive compound (≥3.3/3.3kV)

Insulation: EPR

Insulation Screen: Semi-conductive elastomer

Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.

3xInterstitial Pilot: EPR covered flexible stranded tinned copper conductor.

Cradle Separator: Semi-conductive PCP.

Sheath: Heavy duty PCP sheath(Heavy duty CPE/CSP sheath optional)

                      Type 240.1 Mining Cable

Nominal Conductor    Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor		Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
			Strand Size	Area of   Screen	Strand Size	Thickness of Covering
mm²	No/mm	mm	No/mm	mm²	No/mm	mm	mm	mm	kg/100m
Type 240.1
6	84/0.30	1.5	7/0.25	7.2	18/0.30	1.0	3.8	30.0	131
10	77/0.40	1.5	7/0.25	8.6	27/0.30	1.0	3.8	32.6	159
16	126/0.40	1.6	7/0.25	9.6	42/0.30	1.0	4.0	35.8	202
25	209/0.40	1.6	7/0.25	11.3	66/0.30	1.2	4.3	39.7	265
35	285/0.40	1.6	7/0.25	12.4	90/0.30	1.2	4.6	43.1	326
50	380/0.40	1.7	7/0.25	14.1	120/0.30	1.2	5.0	47.7	404
70	203/0.67	1.8	7/0.25	16.5	39/0.67	1.2	5.4	53.9	533
95	259/0.67	2.0	7/0.25	18.2	39/0.67	1.2	6.0	58.6	635
120	336/0.67	2.1	7/0.25	20.3	42/0.67	1.4	6.4	64.4	775
150	427/0.67	2.3	7/0.25	22.3	54/0.67	1.4	6.9	70.2	940
185	518/0.67	2.5	7/0.30	30.2	63/0.67	1.4	7.4	77.4	1150
240	672/0.67	2.8	7/0.30	33.6	77/0.67	1.6	8.2	86.0	1440
300	854/0.67	3.0	7/0.40	50.1	98/0.67	1.6	8.8	95.1	1810

Type 240.3 Mining Cable

Nominal Conductor Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor		Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
			Strand Size	Area of Screen	Strand Size	Thickness of Covering
mm²	No/mm	mm	No/mm	mm²	No/mm	mm	mm	mm	kg/100m
Type 240.3
16	126/0.40	3.0	7/0.25	13.1	42/0.30	1.4	5.3	46.2	306
25	209/0.40	3.0	7/0.25	14.8	66/0.30	1.4	5.6	50.1	379
35	285/0.40	3.0	7/0.25	15.8	90/0.30	1.4	5.9	53.5	444
50	380/0.40	3.0	7/0.25	17.2	120/0.30	1.4	6.3	57.6	525
70	203/0.67	3.0	7/0.25	18.6	39/0.67	1.4	6.6	62.5	656
95	259/0.67	3.0	7/0.25	20.3	39/0.67	1.4	7.1	66.2	750
120	336/0.67	3.0	7/0.30	27.2	42/0.67	1.6	7.4	72.0	910
150	427/0.67	3.0	7/0.40	39.6	54/0.67	1.6	7.8	78.0	1115
185	518/0.67	3.0	7/0.40	42.2	63/0.67	1.8	8.2	83.4	1280
240	672/0.67	3.0	7/0.40	46.6	77/0.67	1.8	8.8	90.3	1540
300	854/0.67	3.0	7/0.50	63.2	98/0.67	1.8	9.4	98.4	1920

Type 240.6 Mining Cable

Nominal Conductor    Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor		Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
			Strand Size	Area of  Screen	Strand Size	Thickness of Covering
mm²	No/mm	mm	No/mm	mm²	No/mm	mm	mm	mm	kg/100m
Type 240.6
16	126/0.40	5.0	7/0.25	17.2	42/0.30	1.4	6.4	57.3	440
25	209/0.40	5.0	7/0.25	18.6	66/0.30	1.4	6.7	61.2	521
