Type 209 1.1/11KV Mining Cable

High-quality materials
International standards compliant
Durable construction
Long service life
Quality tested
Custom lengths available
Request Quotation
Overview

Application

The Type 209 series mining cable is engineered for demanding underground applications. This cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment.

Applicable Standards

  • AS/NZS 1802:2003
  • AS/NZS 1125
  • AS/NZS 3808
  • AS/NZS 5000.1

Construction

  • 3×Conductors: Flexible stranded tinned annealed copper conductor.
  • Conductor Screen: Semi-conductive compound (≥3.3KV)
  • Insulation: EPR
  • Insulation Screen: Semi-conductive elastomer.
  • Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
  • Cradle Separator: Semi-conductive PCP
  • 1×Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor.
  • Sheath: Heavy duty PCP sheath. (Heavy duty CPE/CSP sheath optional)

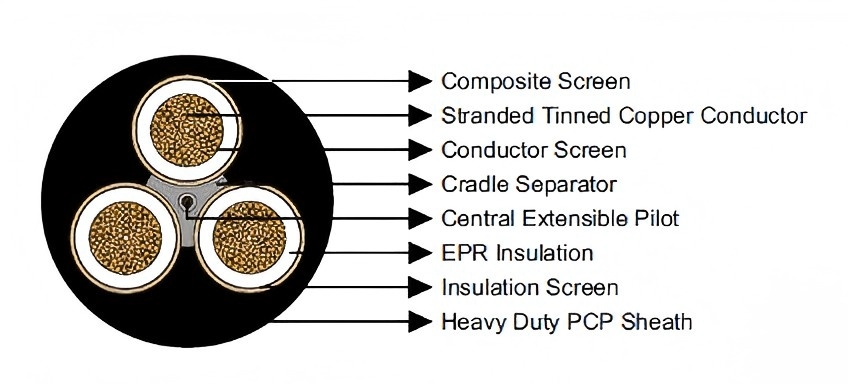

Structure Diagram

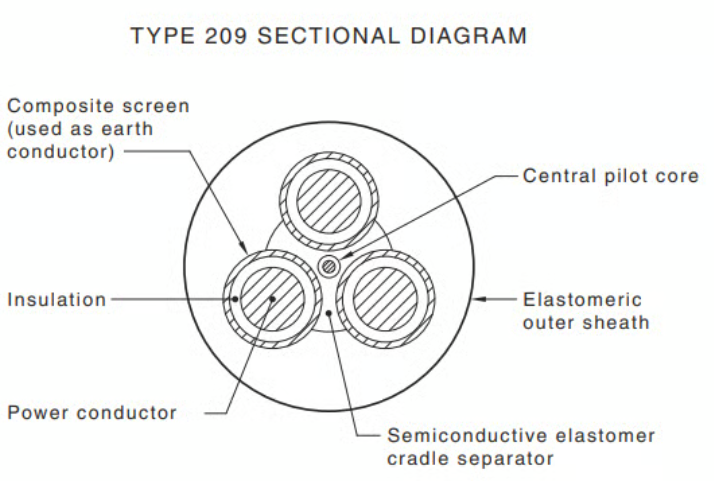

Cable Structure Diagram

Technical Parameters

Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Thickness of Sheath Nominal Overall Diameter Nominal Weight
mm2 No/mm mm No/mm mm2 No/mm mm mm mm kg/100m
6 84/0.30 1.5 7/0.25 7.2 24/0.20 0.8 3.8 30.0 129
10 77/0.40 1.5 7/0.25 8.6 24/0.20 0.8 3.8 32.6 157
16 126/0.40 1.6 7/0.25 9.6 24/0.20 0.8 4.0 35.8 197
25 209/0.40 1.6 7/0.25 11.3 24/0.20 0.8 4.3 39.7 255
35 285/0.40 1.6 7/0.25 12.4 24/0.20 0.8 4.6 43.1 312
50 380/0.40 1.7 7/0.25 14.1 40/0.20 0.8 5.0 47.7 386
70 203/0.67 1.8 7/0.25 16.5 40/0.20 0.8 5.4 52.8 503
95 259/0.67 2.0 7/0.25 18.2 40/0.20 0.8 6.0 58.6 605
120 336/0.67 2.1 7/0.25 20.3 40/0.20 0.8 6.4 64.4 741
150 427/0.67 2.3 7/0.25 22.3 40/0.20 0.8 6.9 70.2 896
185 518/0.67 2.5 7/0.30 30.2 40/0.20 0.8 7.4 77.4 1092
240 672/0.67 2.8 7/0.30 33.6 40/0.20 0.8 8.2 86.0 1365
300 854/0.67 3.0 7/0.40 50.1 40/0.20 0.8 8.8 95.1 1715
Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Thickness of Sheath Nominal Overall Diameter Nominal Weight
mm2 No/mm mm No/mm mm2 No/mm mm mm mm kg/100m
16 126/0.40 3.0 7/0.25 13.1 24/0.20 0.8 5.3 46.2 301
25 209/0.40 3.0 7/0.25 14.8 24/0.20 0.8 5.6 50.1 369
35 285/0.40 3.0 7/0.25 15.8 24/0.20 0.8 5.9 53.5 431
50 380/0.40 3.0 7/0.25 17.2 40/0.20 0.8 6.3 57.6 507
70 203/0.67 3.0 7/0.25 18.6 40/0.20 0.8 6.6 62.5 624
95 259/0.67 3.0 7/0.25 20.3 40/0.20 0.8 7.1 66.2 719
120 336/0.67 3.0 7/0.30 27.2 40/0.20 0.8 7.4 72.0 876
150 427/0.67 3.0 7/0.40 39.6 40/0.20 0.8 7.8 78.0 1072
185 518/0.67 3.0 7/0.40 42.2 40/0.20 0.8 8.2 83.4 1236
240 672/0.67 3.0 7/0.40 46.6 40/0.20 0.8 8.8 90.3 1500
300 854/0.67 3.0 7/0.50 63.2 40/0.20 0.8 9.4 98.4 1840
Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Thickness of Sheath Nominal Overall Diameter Nominal Weight
mm2 No/mm mm No/mm mm2 No/mm mm mm mm kg/100m
16 126/0.40 5.0 7/0.25 17.2 24/0.20 0.8 6.4 57.3 435
25 209/0.40 5.0 7/0.25 18.6 24/0.20 0.8 6.7 61.2 512
35 285/0.40 5.0 7/0.25 18.6 24/0.20 0.8 7.0 64.6 582
50 380/0.40 5.0 7/0.25 21.3 40/0.20 0.8 7.3 68.5 668
70 203/0.67 5.0 7/0.25 23.4 40/0.20 0.8 7.7 73.7 799
95 259/0.67 5.0 7/0.30 29.2 40/0.20 0.8 8.1 77.8 935
120 336/0.67 5.0 7/0.30 31.7 40/0.20 0.8 8.5 83.1 1090
150 427/0.67 5.0 7/0.40 45.7 40/0.20 0.8 8.9 89.1 1310
185 518/0.67 5.0 7/0.40 48.4 40/0.20 0.8 9.3 94.5 1480
240 672/0.67 5.0 7/0.40 52.8 40/0.20 0.8 9.9 101.4 1750
300 854/0.67 5.0 7/0.50 71.5 40/0.20 0.8 10.4 109.3 2120
Nominal Conductor Area Strand Size Insulation Thickness Core Screen Core Screen Pilot Conductor Pilot Conductor Thickness of Sheath Nominal Overall Diameter Nominal Weight
Nominal Conductor Area Strand Size Insulation Thickness Strand Size Area of Screen Strand Size Thickness of Covering Thickness of Sheath Nominal Overall Diameter Nominal Weight
mm2 No/mm mm No/mm mm2 No/mm mm mm mm kg/100m
25 209/0.40 7.6 7/0.25 23.7 24/0.20 0.8 8.1 75.6 750
35 285/0.40 7.6 7/0.30 30.2 24/0.20 0.8 8.4 79.7 858
50 380/0.40 7.6 7/0.30 31.7 40/0.20 0.8 8.7 83.6 960
70 203/0.67 7.6 7/0.30 34.1 40/0.20 0.8 9.1 88.8 1093
95 259/0.67 7.6 7/0.40 47.5 40/0.20 0.8 9.6 93.7 1267
120 336/0.67 7.6 7/0.40 51.0 40/0.20 0.8 9.9 98.8 1436
150 427/0.67 7.6 7/0.40 53.7 40/0.20 0.8 10.3 103.5 1614
185 518/0.67 7.6 7/0.40 57.2 40/0.20 0.8 10.7 108.8 1830
