TUV Certified PV Solar Cable

Overview Application Standards Construction Structure Parameters Downloads

Overview

Application

Engineered for peak performance in renewable energy installations, our TUV Certified PV Solar Cable is built to meet the demanding requirements of modern solar energy systems, offering high durability, long service life, and excellent electrical performance.

Applicable Standards

EN50618
IEC62930

Construction

Conductor: Class 5 flexible tinned copper conductor
Insulation: Halogen-free cross-linked compound
Outer Sheath: Halogen-free cross-linked, flame retardant compound (Color Optional)

Available in Single Core and Twin Cores configurations.

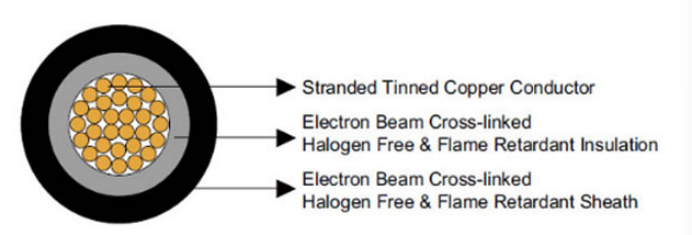

Structure Diagram

Technical Parameters

No.&Nominal Sectional Area	Nom.Thickness of Insulation	Nom.Thickness of Out sheath	Maximum D.C. Resistance at 20℃	Current Carrying Capacity
mm2	mm	mm	Ω/km	A
1×1.5	0.7	0.8	13.7	30
1×2.5	0.7	0.8	8.21	41
1×4	0.7	0.8	5.09	55
1×6	0.7	0.8	3.39	70
1×10	0.7	0.8	1.95	98
1×16	0.7	0.9	1.24	132
1×25	0.9	1.0	0.795	176
1×35	0.9	1.1	0.565	218
1×50	1.0	1.2	0.393	276
1×70	1.1	1.2	0.277	347
1×95	1.1	1.3	0.210	416
1×120	1.2	1.3	0.164	488
1×150	1.4	1.4	0.132	566
1×185	1.6	1.6	0.108	644
1×240	1.7	1.7	0.817	775

No.&Nominal Sectional Area	Nom.Thickness of Insulation	Nom.Thickness of Out sheath	Maximum D.C. Resistance at 20℃	Current Carrying Capacity
mm2	mm	mm	Ω/km	A
2×1.5	0.7	0.8	13.7	30
2×2.5	0.7	0.8	8.21	41
2×4	0.7	0.8	5.09	55
2×6	0.7	0.8	3.39	70
2×10	0.7	0.8	1.95	98
2×16	0.7	0.9	1.24	132
2×25	0.9	1.0	0.795	176
2×35	0.9	1.1	0.565	218
2×50	1.0	1.2	0.393	276
2×70	1.1	1.2	0.277	347
2×95	1.1	1.3	0.210	416
2×120	1.2	1.3	0.164	488
2×150	1.4	1.4	0.132	566
2×185	1.6	1.6	0.108	644
2×240	1.7	1.7	0.817	775
