Application：

Medium Voltage (MV) 3-Core, Individual Screen, Steel Wire Armoured (SWA) Cable to AS/NZS 1429.1.This type of cable is primarily used in Medium Voltage (MV) power distribution networks and is typically involved in fixed installation applications requiring robust mechanical protection and heavy-duty construction.

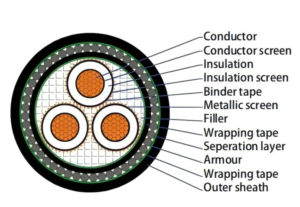

Construction:

Conductor : Class 2 stranded(compacted) copper wire

Conductor screen : Semi-conductive compound material

Insulation: XLPE insulation –Colour: Red,White,Blue

Insulation screen : Semi-conductive compound material

Binder tape :Semi-conductive water blocking binder tape

Metallic screen : HD-Plain anealed copper wire-(optional: LD)

Filler: PP filler (Non hygroscopic material)

Wrapping tape : Non-woven tape (Non-hygroscopic)

Seperation layer : 5V-90-PVC Colour: Black

Armour:Galvanized steel wire

Outer Sheath : 5V-90 PVC (optional:HDPE/LSZH)-Colour: Black

Colour: Black /Composite sheath Orange+Black

Technical Parameters:

3.8/6.6KV Three Core SWA

Nom. Conductor Area	Nomiral Conductor Diameter	Nominal Insulatian Thickness	Nominal Diameter Over Insuation	Nom. Screen Area	No.&Nom. Diameter  of Screen Wires	Nom.Dia Over Wire Screen	Nom. Dia over  Armour Bedding	Normal Armour Wire Diameter	Nominal Diameter Over Armour	Nom.Overall Dia	Approx. Mass
mm²	mm	mm	mm	mm	no/mm	mm	mm	mm	mm	mm	kg/100m
Copper Conductors,up to 10kA Fault Level
16	4.8	2.5	11.0	17.0	10/0.85	14.3	34.0	20	38.0	42.6	295
25	5.8	2.5	12.0	25.5	15/0.85	15.3	36.1	20	40.1	44.9	345
35	6.8	2.5	13.0	34.0	20/0.85	16.3	38.5	2.5	43.5	48.7	440
50	8.0	2.5	14.1	49.4	29/0.85	17.4	41.0	2.5	46.0	51.4	515
70	9.6	2.5	15.7	68.1	40/0.85	19.0	44.6	2.5	49.6	55.2	630
95	11.5	2.5	17.6	68.1	40/0.85	20.9	48.9	2.5	53.9	59.7	745
120	13.1	2.5	19.2	68.1	40/0.85	22.5	52.3	2.5	57.3	63.3	850
150	14.5	2.5	20.6	68.1	40/0.85	23.9	55.7	25	60.7	66.9	960
185	16.1	2.5	22.2	68.1	40/0.85	25.5	59.4	2.5	64.4	70.8	1090
240	18.5	2.6	24.9	68.1	40/0.85	28.2	65.3	3.15	71.6	78.6	1410
300	20.7	2.8	27.6	68.1	40/0.85	30.9	71.4	3.15	77.7	85.2	1660
400	23.6	3.0	30.9	68.1	40/0.85	34.2	78.8	3.15	85.1	92.9	2030
Aluminum Conductors,up to 10kA Fault Level
35	6.9	2.5	13.0	23.8	14/0.85	16.3	38.6	2.5	43.6	48.6	370
50	8.1	2.5	14.2	32.3	19/0.85	17.5	41.1	2.5	46.1	51.5	410
70	9.6	2.5	15.8	46.0	27/0.85	19.1	44.7	2.5	49.7	55.3	480
95	11.4	2.5	17.5	61.3	36/0.85	20.8	48.6	2.5	53.6	59.4	555
120	12.8	25	18.9	68.1	40/0.85	22.2	51.6	2.5	56.6	62.6	615
150	14.2	25	20.3	68.1	40/0.85	23.6	54.9	2.5	59.9	66.1	665
185	15.7	2.5	21.8	68.1	40/0.85	25.1	58.3	2.5	63.3	69.7	735
240	18.0	26	24.3	68.1	40/0.85	27.6	63.9	3.15	70.2	77.3	940
300	20.1	28	27.0	68.1	40/0.85	30.3	70.0	3.15	76.3	83.7	1070
400	23.0	3.0	30.3	68.1	40/0.85	33.6	77.2	3.15	83.5	91.4	1240

                             6.35/11KV Three Core SWA

Nom. Conductor Area	Nomiral Conductor Diameter	Nominal Insulation Thickness	Nominal Diameter Over Insulation	Nom. Screen Area	No.&Nom. Diameter  of Screen Wires	Nom.Dia Over Wire Screen	Nom. Dia. over  Armour Bedding	Normal Armour Wire Diameter	Nominal Diameter Over Armour	Nom.Overall Dia	Appro.Mass
mm²	mm	mm	mm	mm²	No./mm	mm	mm	mm	mm	mm	kg/100m
Copper Conductors,up to 10kA Fault Level
16	4.8	3.4	12.8	17.0	10/0.85	16.1	37.9	2.0	41.9	46.9	330
25	5.8	3.4	13.8	25.5	15/0.85	17.1	40.2	2.5	45.2	50.4	430
35	6.8	3.4	14.8	34.0	20/0.85	18.1	42.6	2.5	47.6	53.0	490
50	8.0	3.4	16.0	49.4	29/0.85	19.3	45.1	2.5	50.1	55.7	565
70	9.6	3.4	17.6	68.1	40/0.85	20.9	48.8	2.5	53.8	59.6	680
95	11.5	3.4	19.4	68.1	40/0.85	22.7	53.0	2.5	58.0	64.1	795
120	13.1	3.4	21.0	68.1	40/0.85	24.3	56.4	2.5	61.4	67.9	910
150	14.5	3.4	22.4	68.1	40/0.85	25.7	59.9	2.5	64.9	71.5	1020
185	16.1	3.4	24.1	68.1	40/0.85	27.4	63.3	2.5	68.3	75.2	1150
240	18.5	3.4	26.5	68.1	40/0.85	29.8	68.8	3.15	75.1	82.3	1470
300	20.7	3.4	28.9	68.1	40/0.85	32.2	74.1	3.15	80.4	88.0	1710
400	23.6	3.4	31.8	68.1	40/0.85	35.3	81.2	3.15	87.5	95.5	2070
500	26.5	3.4	34.7	68.1	40/0.85	38.2	87.6	3.15	93.9	102.4	2450
Aluminum Conductors,up to 10kA Fault Level
35	6.9	3.4	14.9	23.8	14/0.85	18.2	42.6	2.5	47.6	53.0	415
50	8.1	3.4	16.0	323	19/0.85	19.3	452	2.5	50.2	55.8	460
70	9.6	3.4	17.6	46.0	27/0.85	20.9	48.9	2.5	53.9	59.7	530
95	11.4	3.4	19.3	61.3	36/0.85	22.6	52.8	2.5	57.8	63.8	610
120	12.8	3.4	20.7	68.1	40/0.85	24.0	55.8	2.5	60.8	67.2	675
150	14.2	3.4	22.1	68.1	40/0.85	25.4	59.0	2.5	64.0	70.7	730
185	15.7	3.4	23.6	68.1	40/0.85	26.9	62.3	2.5	67.3	74.1	800
240	18.0	3.4	25.9	68.1	40/0.85	29.2	67.4	3.15	73.7	81.0	990
300	20.1	3.4	28.3	68.1	40/085	31.6	72.6	3.15	78.9	86.6	1110
400	23.0	3.4	31.1	68.1	40/0.85	34.6	79.8	3.15	86.1	94.1	1290

                            12.7/22KV Three Core SWA

Nom.  Conductor Area	Nom.  Conductor Diameter	Nom. Insulation Thickness	Nom. Dia Over Insulation	Nom.  Screen Area	No./Nom.Dia of Screen Wires	Nom. Dia Over Wire Screen	Nom.Dia Over Armour Bedding	Nom. Armour Wire Dia	Nom. Dia Over Armour	Nom. Overall Diameter	Approx. Mass
mm²	mm	mm	mm	mm²	No./mm	mm	mm	mm	mm	mm	kg/100m
Copper Conductors,up to 10kA Fault Level
35	6.8	5.5	19.1	34.0	20/0.85	22.4	52.1	2.5	57.1	63.2	610
50	8.0	5.5	20.3	49.4	29/0.85	23.6	54.8	2.5	59.8	66.0	685
70	9.6	5.5	21.9	68.1	40/0.85	25.2	58.5	25	63.5	70.1	810
95	11.5	5.5	23.8	68.1	40/0.85	27.1	62.6	25	67.6	74.4	935
120	13.1	5.5	25.3	68.1	40/0.85	28.6	66.3	3.15	72.6	79.6	1140
150	14.5	5.5	26.8	68.1	40/0.85	30.1	69.6	3.15	75.9	83.1	1270
185	16.1	5.5	28.4	68.1	40/0.85	31.7	73.0	3.15	79.3	87.0	1400
240	18.5	5.5	30.8	68.1	40/0.85	34.1	78.5	3.15	84.8	92.6	1640
300	20.7	5.5	33.2	68.1	40/0.85	36.7	84.2	3.15	90.5	98.8	1900
400	23.6	5.5	36.1	68.1	40/0.85	39.6	90.7	3.15	97.0	105.6	2260
500	26.5	5.5	39.0	68.1	40/0.85	42.5	97.1	3.15	103.4	112.5	2640
Aluminum Conductors,up to 10kA Fault Level
35	6.9	55	19.2	23.8	14/0.85	22.5	523	2.5	57.3	63.3	535
50	8.1	55	20.3	323	19/085	23.6	54.9	25	59.9	66.1	585
70	9.6	5.5	21.9	46.0	27/0.85	25.2	58.6	2.5	63.6	70.0	665
95	11.4	5.5	23.6	61.3	36/0.85	26.9	62.3	25	67.3	74.1	750
120	12.8	5.5	25.0	68.1	40/0.85	28.3	65.5	3.15	71.8	78.8	900
150	14.2	5.5	26.4	68.1	40/0.85	29.7	68.7	3.15	75.0	82.3	975
185	15.7	5.5	27.9	68.1	40/0.85	31.2	72.0	3.15	78.3	85.9	1040
240	18.0	5.5	30.3	68.1	40/0.85	33.6	77.1	3.15	83.4	91.3	1160
300	20.1	5.5	32.6	68.1	40/0.85	36.1	82.8	3.15	89.1	97.3	1300
400	23.0	5.5	35.4	68.1	40/0.85	38.9	89.3	3.15	95.6	104.2	1480
500	26.5	5.5	39.0	68.1	40/0.85	42.5	97.1	3.15	103.4	112.5	1700

                        19/33KV Three Core SWA

Nom.  Conductor Area	Nom.  Conductor Diameter	Nom. Insulation Thickness	Nom.    Dia. Over Insulation	Nom.  Screen Area	No./Nom.Dia of Screen Wires	Nom. Dia Over Wire Screen	Nom.Dia Over Armour Bedding	Nom. Armour Wire Dia	Nom. Dia Over Armour	Nom. Overall Diameter	Approx. Mass
mm²	mm	mm	mm	mm²	No./mm	mm	mm	mm	mm	mm	kg/100m
Copper Conductors,up to 10kA Fault Level
50	8	8	25.5	49.4	29/0.85	28.8	66.5	3.15	72.8	80.1	950
70	9.6	8	27.1	68.1	40/0.85	30.4	70.2	3.15	76.5	83.9	1080
95	11.5	8	29	68.1	40/0.85	32.3	74.2	3.15	80.5	88.2	1220
120	13.1	8	30.6	68.1	40/0.85	33.9	78	3.15	84.3	92.1	1340
150	14.5	8	32	68.1	40/0.85	35.5	81.7	3.15	88	96	1490
185	16.1	8	33.6	68.1	40/0.85	37.1	85.2	3.15	91.5	99.9	1630
240	18.5	8	36	68.1	40/0.85	39.5	90.6	3.15	96.9	105.6	1880
300	20.7	8	38.4	68.1	40/0.85	41.9	95.9	3.15	102.2	111.3	2140
400	23.6	8	41.3	68.1	40/0.85	44.8	1024	3.15	108.7	118.1	2510
500	26.5	8	44.2	68.1	40/0.85	47.7	109	3.15	115.3	125.2	2900
Aluminum Conductors,up to 10kA Fault Level
50	8.1	8	25.6	32.3	19/0.85	28.9	66.6	3.15	72.9	80.2	850
70	9.6	8	27.2	46	27/0.85	30.5	70.3	3.15	76.6	84	935
95	11.4	8	28.9	61.3	36/0.85	32.2	74	3.15	80.3	87.9	1030
120	128	8	30.3	68.1	40/0.85	33.6	77.2	3.15	83.5	91.3	1100
150	14.2	8	31.7	68.1	40/0.85	35.2	80.9	3.15	87.2	95.2	1190
185	15.7	8	33.2	68.1	40/0.85	36.7	84.1	3.15	90.4	98.8	1270
240	18	8	35.5	68.1	40/0.85	39	89.4	3.15	95.7	104.4	1400
300	20.1	8	37.8	68.1	40/0.85	41.3	94.6	3.15	100.9	110	1540
400	23	8	40.7	68.1	40/0.85	44.2	101	3.15	107.3	116.7	1720
500	26.5	8	44.2	68.1	40/0.85	47.7	109	3.15	115.3	125.2	1960
