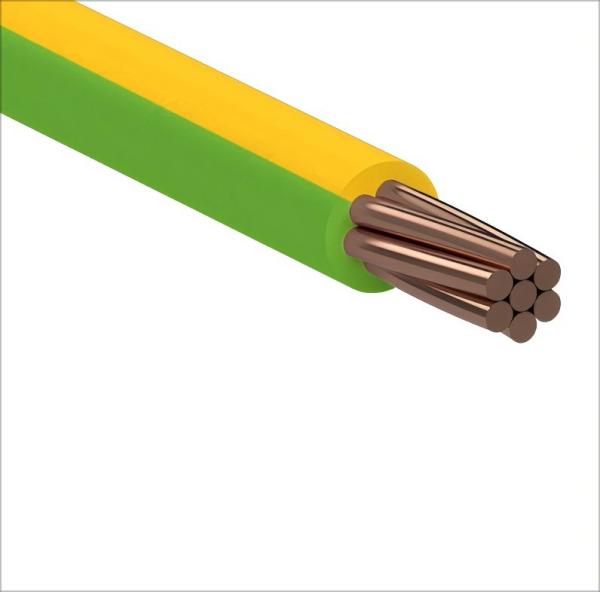

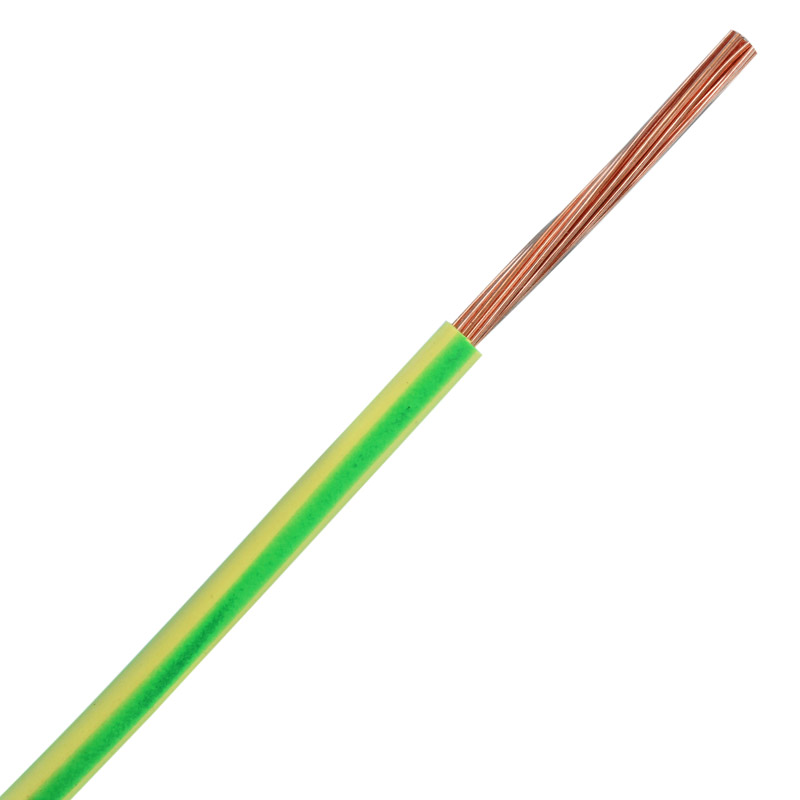

Designed for reliable electrical installations, these single-core PVC-insulated unsheathed cables comply with AS/NZS 5000.1 standard and are engineered for applications with a maximum working voltage of 0.6/1 (1.2) kV.
| Nominal Cross Section | Conductor Type | Nominal Insulation Thickness | Approx.Overall Diameter | Approxi.Weight | Maximum DCresistance at 20℃ |
|---|---|---|---|---|---|
| mm² | mm² | mm | mm | kg/km | Ω/Km |
| 0.5 | Class 1 | 0.8 | 2.4 | 10.00 | 36.0 |
| 1.0 | Class 1 | 0.8 | 2.8 | 16.00 | 18.1 |
| 1.0 | Class 2 | 0.8 | 2.9 | 17.00 | 21.2 |
| 1.5 | Class 2 | 0.8 | 3.1 | 20.00 | 13.6 |
| 2.5 | Class 2 | 0.8 | 3.6 | 32.00 | 7.41 |
| 4 | Class 2 | 1.0 | 4.5 | 51.00 | 4.61 |
| 6 | Class 2 | 1.0 | 5.1 | 71.00 | 3.08 |
| 10 | Class 2 | 1.0 | 6.0 | 110.00 | 1.83 |
| 16 | Class 2 | 1.0 | 6.9 | 170.00 | 1.15 |
| 25 | Class 2 | 1.2 | 8.4 | 260.00 | 0.727 |
| 35 | Class 2 | 1.2 | 9.4 | 350.00 | 0.524 |
| 50 | Class 2 | 1.4 | 10.9 | 480.00 | 0.387 |
| 70 | Class 2 | 1.4 | 12.4 | 670.00 | 0.268 |
| 95 | Class 2 | 1.6 | 15.2 | 960.00 | 0.193 |
| 120 | Class 2 | 1.6 | 17.3 | 1180.00 | 0.153 |
| 150 | Class 2 | 1.8 | 18.8 | 1440.00 | 0.124 |
| 185 | Class 2 | 2.0 | 21.1 | 1800.00 | 0.0991 |
| 240 | Class 2 | 2.2 | 24.1 | 2360.00 | 0.0754 |
| 300 | Class 2 | 2.4 | 26.9 | 2960.00 | 0.0601 |
| 400 | Class 2 | 2.6 | 30.6 | 3760.00 | 0.0470 |
| 500 | Class 2 | 2.8 | 34.1 | 4770.00 | 0.0366 |
| 630 | Class 2 | 2.8 | 37.8 | 6130.00 | 0.0283 |
