Single Core 3.8-6.6–19-33kV Screened & PVC Sheathed

Home› Products› Single Core 3.8-6.6–19-33kV Screened & PVC Sheathed

Single Core 3.8-6.6–19-33kV Screened & PVC Sheathed

High-quality materials
International standards compliant
Durable construction
Long service life
Quality tested
Custom lengths available
Request Quotation
Overview

Application

This high-voltage single core cable is engineered for demanding industrial and infrastructure applications. Suitable for use in power networks, industrial plants, and other installations requiring reliable performance at voltages from 3.8/6.6kV up to 19/33kV.

Applicable Standards

  • Structure: AS/NZS 1429.1
  • Conductor: AS/NZS 1125
  • Sheath: AS/NZS 3808

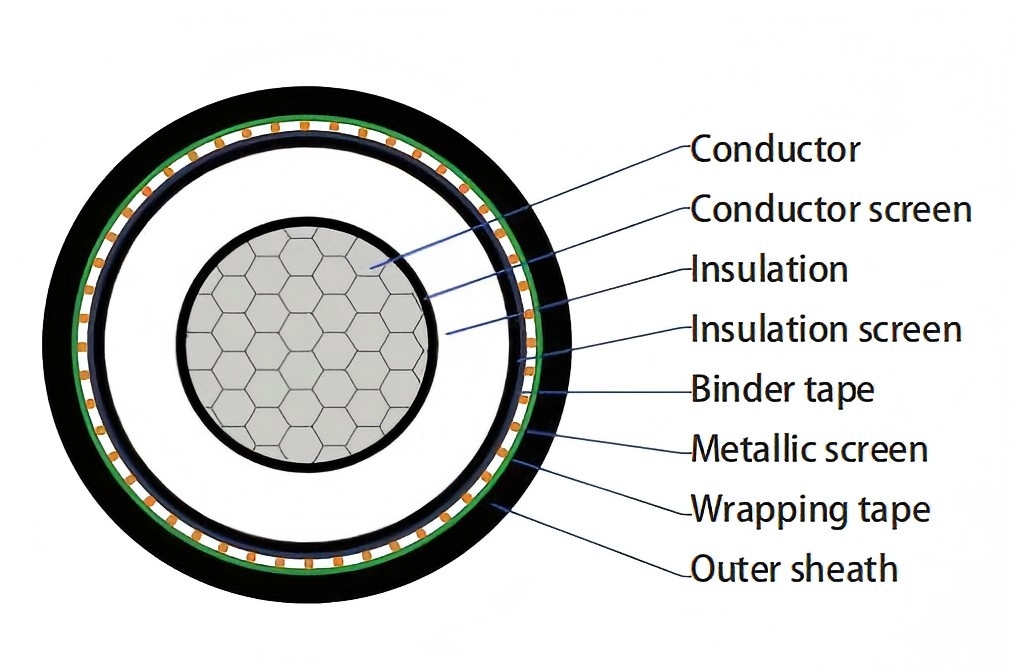

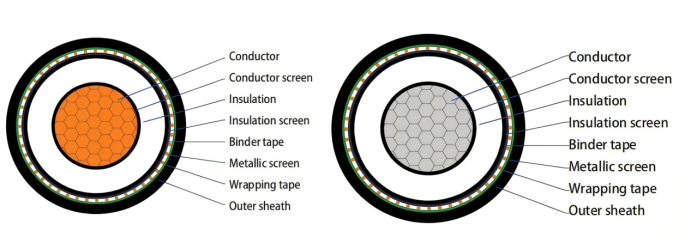

Construction

  • Conductor: Class 2 stranded (compacted) copper/aluminum wire
  • Conductor Screen: Semi-conductive compound material
  • Insulation: XLPE insulation – Colour: Natural
  • Insulation Screen: Semi-conductive compound material
  • Binder Tape: Semi-conductive water blocking binder tape
  • Metallic Screen: HD-Plain annealed copper wire (optional: LD)
  • Wrapping Tape: Non-woven tape (Non-hygroscopic)
  • Outer Sheath: 5V-90 PVC (optional: HDPE/LSZH) – Colour: Black

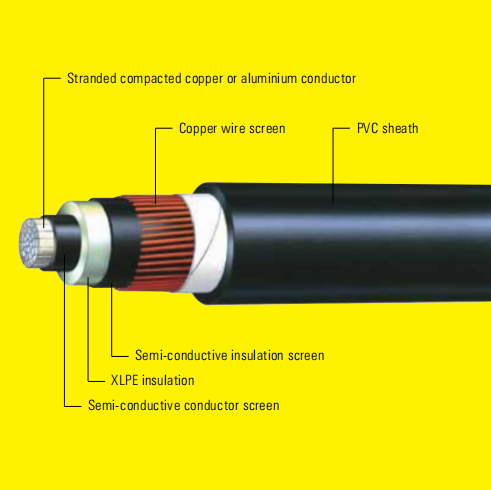

Structure Diagram

Cable Structure Diagram

Technical Parameters

Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom.Overall Diameter Approx.Weight
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom.Overall Diameter Approx.Weight
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom.Overall Diameter Approx.Weight
mm2 mm mm Mm mm2 No./mm Mm mm KG/100m
Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level
16 4.8 2.5 11.0 15.9 28/0.85 14.3 18.4 54
25 5.8 2.5 12.0 24.4 43/0.85 15.3 19.4 72
35 6.8 2.5 13.0 34.4 24/1.35 17.3 21.4 93
50 8.0 2.5 14.1 48.7 34/1.35 18.4 22.5 120
70 9.6 2.5 15.7 68.1 30/1.70 20.7 25.0 160
95 11.5 2.5 17.6 68.1 30/1.70 22.6 26.9 190
120 13.1 2.5 19.2 68.7 48/1.35 23.5 27.6 215
150 14.5 2.5 20.6 68.7 48/1.35 24.9 29.0 245
185 16.1 2.5 22.2 68.7 48/1.35 26.5 30.8 275
240 18.5 2.6 24.9 68.7 48/1.35 29.2 33.7 335
300 20.7 2.8 27.6 68.7 48/1.35 31.9 36.6 400
400 23.6 3.0 30.9 68.7 48/1.35 35.2 40.2 500
Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level Aluminum Conductors,up to 10kA Fault Level
35 6.9 2.5 13.0 22.7 40/0.85 16.3 20.4 60
50 8.1 2.5 14.2 32.9 23/1.35 18.5 22.6 76
70 9.6 2.5 15.8 45.8 32/1.35 20.1 24.2 97
95 11.4 2.5 17.5 61.5 43/1.35 21.8 25.9 120
120 12.8 2.5 18.9 68.7 48/1.35 23.2 27.3 140
150 14.2 2.5 20.3 68.7 48/1.35 24.6 28.7 150
185 15.7 2.5 21.8 68.7 48/1.35 26.1 30.4 160
240 18.0 2.6 24.3 68.7 48/1.35 28.6 33.1 185
300 20.1 2.8 27.0 68.7 48/1.35 31.3 36.0 210
400 23.0 3.0 30.3 68.7 48/1.35 34.6 39.5 245
Nom. Conductor Area Nom. Conductor Area Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom. Overall Diameter Approx. Weight
Nom. Conductor Area Nom. Conductor Area Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom. Overall Diameter Approx. Weight
Nom. Conductor Area Nom. Conductor Area Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom. Overall Diameter Approx. Weight
mm2 mm mm Mm mm2 No./mm Mm mm KG/100m
Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level
16 4.8 3.4 12.8 15.9 28/0.85 16.1 20.2 59
25 5.8 3.4 13.8 24.4 43/0.85 17.1 21.2 78
35 6.8 3.4 14.8 34.4 24/1.35 19.1 23.2 99
50 8.0 3.4 16.0 48.7 34/1.35 20.3 24.4 125
70 9.6 3.4 17.6 68.1 30/1.70 22.6 26.9 165
95 11.5 3.4 19.4 68.7 48/1.35 23.7 27.9 195
120 13.1 3.4 21.0 68.7 48/1.35 25.3 29.4 225
150 14.5 3.4 22.4 68.7 48/1.35 26.7 31.1 255
185 16.1 3.4 24.1 68.7 48/1.35 28.4 32.7 285
240 18.5 3.4 26.5 68.7 48/1.35 30.8 35.3 345
300 20.7 3.4 28.9 68.7 48/1.35 33.2 37.9 410
400 23.6 3.4 31.8 68.7 48/1.35 36.3 41.2 505
500 26.5 3.4 34.7 68.7 48/1.35 39.2 44.3 605
630 29.9 3.4 38.4 68.7 48/1.35 42.9 48.7 730
800 35.9 3.4 44.5 68.7 48/1.35 49.0 55.0 925
Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level
35 6.9 3.4 14.9 22.7 40/0.85 18.2 22.3 66
50 8.1 3.4 16.0 32.9 23/1.35 20.3 24.4 82
70 9.6 3.4 17.6 45.8 32/1.35 21.9 26.0 105
95 11.4 3.4 19.3 61.5 43/1.35 23.6 27.7 130
120 12.8 3.4 20.7 68.7 48/1.35 25.0 29.1 145
150 14.2 3.4 22.1 68.7 48/1.35 26.4 30.7 155
185 15.7 3.4 23.6 68.7 48/1.35 27.9 32.2 170
240 18.0 3.4 25.9 68.7 48/1.35 30.2 34.7 190
300 20.1 3.4 28.3 68.7 48/1.35 32.6 37.3 215
400 23.0 3.4 31.1 68.7 48/1.35 35.6 40.5 250
500 26.5 3.4 34.7 68.7 48/1.35 39.2 44.3 295
630 29.9 3.4 38.4 68.7 48/1.35 42.9 48.4 345
800 34.2 3.4 42.8 68.7 48/1.35 47.3 53.0 405
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom.Overall Diameter Approx.Weight
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom.Overall Diameter Approx.Weight
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom.Overall Diameter Approx.Weight
mm² mm mm mm mm2 No./mm mm mm kg/100m
Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level
35 6.8 5.5 19.1 34.4 24/1.35 23.4 27.5 115
50 8.0 5.5 20.3 48.7 34/1.35 24.6 28.7 140
70 9.6 5.5 21.9 68.7 48/1.35 26.2 30.5 185
95 11.5 5.5 23.8 68.7 48/1.35 28.1 32.4 215
120 13.1 5.5 25.3 68.7 48/1.35 29.6 34.1 245
150 14.5 5.5 26.8 68.7 48/1.35 31.1 35.6 275
185 16.1 5.5 28.4 68.7 48/1.35 32.7 37.4 310
240 18.5 5.5 30.8 68.7 48/1.35 35.1 40.0 375
300 20.7 5.5 33.2 68.7 48/1.35 37.7 42.6 440
400 23.6 5.5 36.1 68.7 48/1.35 40.6 46.1 535
500 26.5 5.5 39.0 68.7 48/1.35 43.5 49.0 640
630 29.9 5.5 42.7 68.7 48/1.35 47.2 53.4 765
800 35.9 5.5 48.8 68.7 48/1.35 53.3 59.7 965
1000 40.2 5.5 54.3 68.7 48/1.35 58.8 65.4 1160
1200 43.8 5.5 58.3 68.7 48/1.35 62.8 69.6 1360
Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level
35 6.9 5.5 19.2 22.7 40/0.85 22.5 26.6 81
50 8.1 5.5 20.3 32.9 23/1.35 24.6 28.7 98
70 9.6 5.5 21.9 45.8 32/1.35 26.2 30.5 120
95 11.4 5.5 23.6 61.5 43/1.35 27.9 32.2 150
120 12.8 5.5 25.0 68.7 48/1.35 29.3 33.8 170
150 14.2 5.5 26.4 68.7 48/1.35 30.7 35.2 180
185 15.7 5.5 27.9 68.7 48/1.35 32.2 36.9 195
240 18.0 5.5 30.3 68.7 48/1.35 34.6 39.5 220
300 20.1 5.5 32.6 68.7 48/1.35 37.1 42.0 245
400 23.0 5.5 35.4 68.7 48/1.35 39.9 45.2 280
500 26.5 5.5 39.0 68.7 48/1.35 43.5 49.0 325
630 29.9 5.5 42.7 68.7 48/1.35 47.2 53.1 380
800 34.2 5.5 47.1 68.7 48/1.35 51.6 57.7 445
1000 40.2 5.5 54.3 68.7 48/1.35 58.8 65.1 540
1200 43.8 5.5 58.3 68.7 48/1.35 62.8 69.3 620
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom. Overall Diameter Approx. Weight
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom. Overall Diameter Approx. Weight
Nom. Conductor Area Nom. Conductor Diameter Nom. Insulation Thickness Nom.Dia Over Insulation Nom.Screen Area on Each Core No.&Dia of Screen Wires Nominal Dia over Wire Screen Nom. Overall Diameter Approx. Weight
mm² mm mm mm mm2 No./mm mm mm kg/100m
Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level Copper Conductors up to 10KA Fault Level
50 8.0 8.0 25.5 48.7 34/1.35 29.8 34.3 170
70 9.6 8.0 27.1 68.7 48/1.35 31.4 36.1 215
95 11.5 8.0 29.0 68.7 48/1.35 33.3 38.0 245
120 13.1 8.0 30.6 68.7 48/1.35 34.9 39.8 280
150 14.5 8.0 32.0 68.7 48/1.35 36.5 41.4 310
185 16.1 8.0 33.6 68.7 48/1.35 38.1 43.2 345
240 18.5 8.0 36.0 68.7 48/1.35 40.5 45.9 410
300 20.7 8.0 38.4 68.7 48/1.35 42.9 48.4 475
400 23.6 8.0 41.3 68.7 48/1.35 45.8 51.5 575
500 26.5 8.0 44.2 68.7 48/1.35 48.7 54.9 685
630 29.9 8.0 47.9 68.7 48/1.35 52.4 58.8 815
800 35.9 8.0 54.0 68.7 48/1.35 58.5 65.3 1020
1000 40.2 8.0 59.5 68.7 48/1.35 64.0 71.0 1220
1200 43.8 8.0 63.5 68.7 48/1.35 68.0 75.2 1420
Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level Aluminum Conductors up to 10KA Fault Level
50 8.1 8.0 25.6 32.9 23/1.35 29.9 34.4 125
70 9.6 8.0 27.2 45.8 32/1.35 31.5 36.2 150
95 11.4 8.0 28.9 61.5 43/1.35 33.2 37.9 180
120 12.8 8.0 30.3 68.7 48/1.35 34.6 39.5 200
150 14.2 8.0 31.7 68.7 48/1.35 36.2 41.1 215
185 15.7 8.0 33.2 68.7 48/1.35 37.7 42.8 230
240 18.0 8.0 35.5 68.7 48/1.35 40.0 45.1 255
300 20.1 8.0 37.8 68.7 48/1.35 42.3 47.8 285
400 23.0 8.0 40.7 68.7 48/1.35 45.2 50.9 320
500 26.5 8.0 44.2 68.7 48/1.35 48.7 54.6 370
630 29.9 8.0 48.0 68.7 48/1.35 52.5 58.6 430
800 34.2 8.0 52.3 68.7 48/1.35 56.8 63.4 500
1000 40.2 8.0 59.5 68.7 48/1.35 64.0 70.8 600
1200 43.8 8.0 63.5 6B.7 48/1.35 68.0 75.0 680
