PVC Control Multi-Core 0.6/1KV

Overview Application Standards Construction Parameters Downloads

Overview

Application

This versatile PVC Control Cable is engineered for demanding industrial applications including electrical equipment, power station control circuits, outdoor applications, and power distribution equipment.

Applicable Standards

AS/NZS5000.1
AS/NZS1125
AS/NZS3808

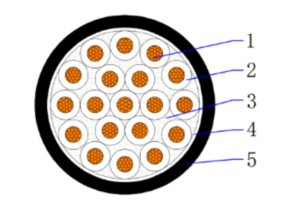

Construction

Conductor: Stranded conductor
Cores: 2-30 core
Insulation: Black PVC
Marking: White numerals printed on the black insulation layer
Filler: Properly filled
Wrapping: Appropriately wrapped
Sheath: Black PVC

Technical Parameters

1.5 MM²(7/0.50 MM)	1.5 MM²(7/0.50 MM)	1.5 MM²(7/0.50 MM)	1.5 MM²(7/0.50 MM)	1.5 MM²(7/0.50 MM)	1.5 MM²(7/0.50 MM)
Nb.of cores	Nom. overall diam. [mm]	Approx. weight [kg/100m]	Max.pulling tension [kN]	Min. bend. rad during instal [mm]	Min. bend.rad. installed [mm]
2	10.1	16.0	0.32	60	40
4	11.9	24.0	0.53	70	48
6	13.1	24.0	0.74	80	52
6	13.1	24.0	0.74	80	52
8	15.4	30.0	0.95	90	62
10	16.1	35.0	1.2	95	64
12	17.0	40.0	1.4	100	68
20	20.1	59.0	2.2	120	80
30	24.3	83.0	3.3	145	97
50	29.4	129.0	5.4	265	176
2.5 MM²(7/0.67 MM)	2.5 MM²(7/0.67 MM)	2.5 MM²(7/0.67 MM)	2.5 MM²(7/0.67 MM)	2.5 MM²(7/0.67 MM)	2.5 MM²(7/0.67 MM)
Nb.of cores	Nom. overall diam. [mm]	Approx. weight [kg/100m]	Max.pulling tension [kN]	Min. bend. rad during instal [mm]	Min. bend. rad installed [mm]
2	11.3	21.0	0.53	70	45
6	14.6	34.0	1.2	90	58
8	17.3	43.0	1.6	105	69
10	18.1	50.0	1.9	110	72
12	20.3	59.3	2.3	120	81
20	22.8	85.0	3.7	135	91
