Individual+Overall Screen Instrument Cable(CU-XLPE-IS-OS-PVC CU-PVC-IS-OS-PVC)

Home› Products› Individual+Overall Screen Instrument Cable(CU-XLPE-IS-OS-PVC CU-PVC-IS-OS-PVC)

Individual+Overall Screen Instrument Cable(CU-XLPE-IS-OS-PVC CU-PVC-IS-OS-PVC)

High-quality materials
International standards compliant
Durable construction
Long service life
Quality tested
Custom lengths available
Request Quotation
Overview

Application

Our Individual & Overall Screened (IS/OS) instrumentation cables are engineered for demanding industrial environments where signal integrity is paramount. These cables are specifically designed for the transmission of analog and digital signals in industrial process control systems, providing optimal performance in applications requiring the highest level of protection against both external electromagnetic interference (EMI) and internal crosstalk between pairs.

Applicable Standards

  • Design Specification as per AS/NZS5000.3, BS EN 50288-7
  • Conductor: AS/NZS1125 IEC60228

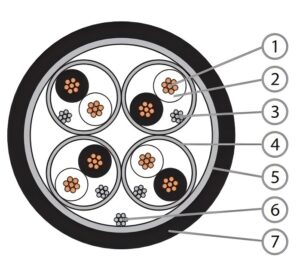

Construction

  • Conductor: Plained Annealed Copper Class 2 Stranded Circular
  • Insulation: (1) Polyvinyl Chloride (PVC) or (2) Cross-linked Polyethylene (XLPE)
  • Tinned Copper Drain Wire
  • Individual Screen: Aluminum/Polyester Tape
  • Overall Screen: Aluminum/Polyester Tape
  • Tinned Copper Drain Wire
  • Outer Sheath: PVC (Black or Blue) – LSZH available upon request

Electrical Parameters

  • Operating Voltage, Uo/U: 300/500V
  • Operating Temperature: -15ºC to 70ºC (PVC Insulated) / -15ºC to 90ºC (XLPE Insulated)
  • Final Short Circuit Temperature: 160ºC (PVC Insulated) / 250ºC (XLPE Insulated)
  • Test Voltage: 2kV for 1 minute

Technical Parameters

No.of Pairs Nominal Conductor Area No.and Diameter of Wires Radial Thickness of Insulation XLPE Insulation XLPE Insulation PVC Insulation PVC Insulation
No.of Pairs Nominal Conductor Area No.and Diameter of Wires Radial Thickness of Insulation Cable Overall Diameter Approximate Weight Cable Overall Diameter Approximate Weight
~ mm2 No./mm mm mm KG/KM mm KG/KM
1P 0.5 7/0.3 0.6 7.1 58 7.1 62
2P 0.5 7/0.3 0.6 11.3 121 11.3 128
3P 0.5 7/0.3 0.6 11.9 151 11.9 161
4P 0.5 7/0.3 0.6 13.0 184 13.0 197
5P 0.5 7/0.3 0.6 14.4 225 14.4 241
6P 0.5 7/0.3 0.6 15.6 259 15.6 279
8P 0.5 7/0.3 0.6 17.7 333 17.7 360
10P 0.5 7/0.3 0.6 20.2 411 20.2 445
12P 0.5 7/0.3 0.6 20.9 469 20.9 509
16P 0.5 7/0.3 0.6 23.1 591 23.1 645
20P 0.5 7/0.3 0.6 26.0 729 26.0 795
24P 0.5 7/0.3 0.6 29.0 870 29.0 951
36P 0.5 7/0.3 0.6 33.5 1254 33.5 1375
1P 0.75 7/0.37 0.6 7.5 66 7.5 70
2P 0.75 7/0.37 0.6 12.0 137 12.0 145
3P 0.75 7/0.37 0.6 12.7 174 12.7 185
4P 0.75 7/0.37 0.6 14.1 221 14.1 236
5P 0.75 7/0.37 0.6 15.4 261 15.4 280
6P 0.75 7/0.37 0.6 17.0 311 17.0 333
8P 0.75 7/0.37 0.6 19.0 390 19.0 420
10P 0.75 7/0.37 0.6 21.7 483 21.7 520
12P 0.75 7/0.37 0.6 22.4 553 22.4 598
16P 0.75 7/0.37 0.6 25.1 713 25.1 773
20P 0.75 7/0.37 0.6 28.2 879 28.2 953
24P 0.75 7/0.37 0.6 31.4 1049 31.4 1139
36P 0.75 7/0.37 0.6 36.4 1514 36.4 1648
1P 1.0 7/0.43 0.6 7.9 74 7.9 78
2P 1.0 7/0.43 0.6 12.6 153 12.6 161
3P 1.0 7/0.43 0.6 13.6 203 13.6 215
4P 1.0 7/0.43 0.6 14.9 250 14.9 266
5P 1.0 7/0.43 0.6 16.2 296 16.3 317
6P 1.0 7/0.43 0.6 17.9 353 17.9 378
8P 1.0 7/0.43 0.6 20.3 456 20.3 488
10P 1.0 7/0.43 0.6 23.0 552 23.0 592
12P 1.0 7/0.43 0.6 24.0 647 24.0 695
16P 1.0 7/0.43 0.6 26.6 820 26.6 885
20P 1.0 7/0.43 0.6 29.9 1013 29.9 1093
24P 1.0 7/0.43 0.6 33.5 1226 33.5 1324
36P 1.0 7/0.43 0.6 38.6 1751 38.6 1896
1P 1.5 7/0.53 0.6 8.5 89 8.5 93
2P 1.5 7/0.53 0.6 13.9 190 13.9 199
3P 1.5 7/0.53 0.6 14.8 245 14.8 259
4P 1.5 7/0.53 0.6 16.2 304 16.2 323
5P 1.5 7/0.53 0.6 17.9 373 17.9 396
6P 1.5 7/0.53 0.6 19.5 434 19.5 462
8P 1.5 7/0.53 0.6 22.1 562 22.1 599
10P 1.5 7/0.53 0.6 25.3 696 25.3 742
12P 1.5 7/0.53 0.6 26.4 817 26.4 872
16P 1.5 7/0.53 0.6 29.3 1041 29.3 1114
20P 1.5 7/0.53 0.6 33.1 1302 33.1 1393
24P 1.5 7/0.53 0.6 36.9 1553 36.9 1663
36P 1.5 7/0.53 0.6 42.7 2248 42.7 2413
1P 2.5 7/0.67 0.7 9.7 117 9.7 124
2P 2.5 7/0.67 0.7 16.3 258 16.3 272
3P 2.5 7/0.67 0.7 17.4 339 17.4 359
4P 2.5 7/0.67 0.7 19.0 423 19.0 450
5P 2.5 7/0.67 0.7 21.1 519 21.1 553
6P 2.5 7/0.67 0.7 23.2 618 23.2 659
8P 2.5 7/0.67 0.7 26.3 800 26.4 855
10P 2.5 7/0.67 0.7 30.1 990 30.1 1059
12P 2.5 7/0.67 0.7 31.2 1146 31.2 1228
16P 2.5 7/0.67 0.7 34.9 1486 34.9 1595
20P 2.5 7/0.67 0.7 39.4 1855 39.4 1990
24P 2.5 7/0.67 0.7 43.9 2212 43.9 2376
36P 2.5 7/0.67 0.7 50.8 3207 50.8 3452
No.of Traids Nominal Conductor Area No.and Diameter of Wires Radial Thickness of Insulation XLPE Insulation XLPE Insulation PVC Insulation PVC Insulation
No.of Traids Nominal Conductor Area No.and Diameter of Wires Radial Thickness of Insulation Cable Overall Diameter Approximate Weight Cable Overall Diameter Approximate Weight
~ mm2 No./mm mm mm KG/KM mm KG/KM
1T 0.5 7/0.3 0.6 7.5 68 7.5 74
6T 0.5 7/0.3 0.6 16.5 317 16.5 356
16T 0.5 7/0.3 0.6 24.4 730 24.4 835
24T 0.5 7/0.3 0.6 30.6 1076 30.6 1233
1T 0.75 7/0.37 0.6 7.9 79 7.9 86
6T 0.75 7/0.37 0.6 17.7 377 17.7 421
16T 0.75 7/0.37 0.6 26.5 899 26.5 1014
24T 0.75 7/0.37 0.6 33.1 1324 33.1 1497
1T 7/0.43 0.6 8.3 89 8.3 97
6T 1.0 7/0.43 0.6 18.7 437 18.7 483
16T 1.0 7/0.43 0.6 28.1 1052 28.1 1176
24T 1.0 7/0.43 0.6 35.4 1673 35.4 1756
1T 7/0.53 0.6 8.9 109 8.9 118
6T 1.5 7/0.53 0.6 20.6 561 20.6 614
16T 1.5 7/0.53 0.6 31.1 1378 31.1 1517
24T 1.5 7/0.53 0.6 39.0 2031 39.0 2240
1T 2.5 7/0.67 0.7 10.5 155 10.5 167
6T 2.5 7/0.67 0.7 24.5 813 24.5 888
16T 2.5 7/0.67 0.7 37.0 2002 37.0 2201
24T 2.5 7/0.67 0.7 46.5 2977 46.5 3275
