Engineered for demanding industrial environments, our Flexible VSD-EMC Cables (0.6/1kV) are suitable for Variable Speed Drive (VSD) systems and any application that demands high-performance screening. They are specifically engineered to provide Electromagnetic Compatibility (EMC) by reducing interference and disturbance, thus preventing unwanted effects caused by the propagation and reception of electromagnetic energy.

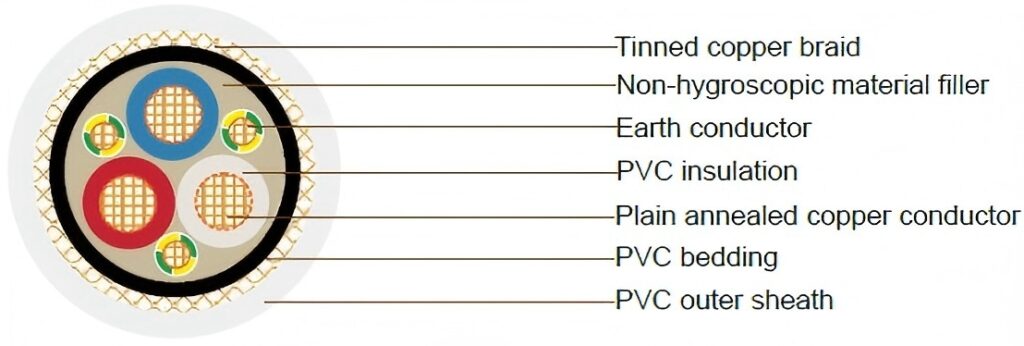

| Conductor | Plain annealed copper, class 5 strands |
|---|---|
| Insulation | Flame retardant polyvinyl chloride PVC |
| Insulation colour: | 3 cores + E: Red, White, Blue + Green/Yellow 4 cores + E: Red, White, Blue, Black + Green/Yellow |
| Filler: | Non-hygroscopic Material |
| Bedding: | Flame retardant polyvinyl chloride PVC |
| Screen: | Tinned annealed copper braid |
| Sheath: | Flame retardant polyvinyl chloride PVC |
| Sheath colour: | Transparent |

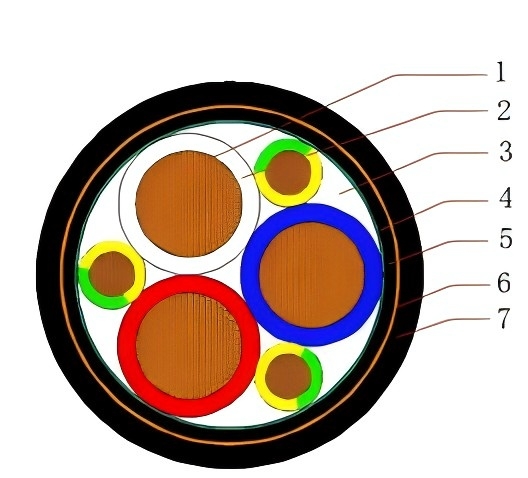

| Conductor | Plain annealed copper, class 5 strands |
|---|---|
| Insulation | Cross -linked polyethylene (XLPE) |
| Insulation colour: | 3 cores + E: Red, White, Blue + Green/Yellow 4 cores + E: Red, White, Blue, Black + Green/Yellow |
| Filler: | Non-hygroscopic material |
| Bedding: | Thermoplastic elastomer (TPE) |
| Screen: | Plain annealed copper braid |
| Sheath: | Thermoplastic elastomer (TPE) |
| Sheath colour: | Black |
| No.of Cores | Nom.Conductor Area | Core Diameter | Earth Conductor Area | Earth Conductor Diameter | Overall Bedding Diameter | Approx.Overall Cable Diameter | Approx.Weight |
|---|---|---|---|---|---|---|---|
| ~ | mm2 | mm | mm2 | mm | mm | mm | KG/KM |
| 2C+E | 1.5 | 3.2 | 1.5 | 3.2 | 9.8 | 14.48 | 220 |
| 2C+E | 2.5 | 3.7 | 2.5 | 3.7 | 11.0 | 15.85 | 272 |
| 3C+E | 1.0 | 2.9 | 1.0 | 2.7 | 9.1 | 13.62 | 205 |
| 3C+E | 1.5 | 3.2 | 1.5 | 3.0 | 9.8 | 14.48 | 238 |
| 3C+E | 2.5 | 3.7 | 2.5 | 3.5 | 11.0 | 15.85 | 299 |
| 3C+E | 4 | 4.7 | 4 | 4.7 | 13.3 | 18.58 | 417 |
| 3C+3E | 6 | 5.3 | 1.5 | 3.0 | 13.4 | 16.86 | 478 |
| 3C+3E | 10 | 6.2 | 1.5 | 3.0 | 15.5 | 19.07 | 636 |
| 3C+3E | 16 | 7.4 | 2.5 | 3.5 | 18.4 | 22.10 | 908 |
| 3C+3E | 25 | 9.1 | 4 | 4.7 | 22.3 | 29.12 | 1357 |
| 3C+3E | 35 | 10.3 | 6 | 5.3 | 25.3 | 32.71 | 1794 |
| 3C+3E | 50 | 12.3 | 10 | 6.2 | 29.5 | 37.67 | 2480 |
| 3C+3E | 70 | 14.0 | 10 | 6.2 | 33.5 | 42.75 | 3323 |
| 4C+E | 1.5 | 3.2 | 1.5 | 3.0 | 9.2 | 13.79 | 239 |
| 4C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.5 | 15.21 | 309 |
| 4C+E | 4 | 4.7 | 2.5 | 3.5 | 12.4 | 17.49 | 415 |
| 4C+E | 6 | 5.3 | 2.5 | 3.5 | 13.6 | 18.92 | 516 |
| 4C+E | 10 | 6.2 | 4 | 4.7 | 16.1 | 21.87 | 753 |
| 4C+E | 16 | 7.4 | 6 | 5.3 | 18.7 | 24.89 | 1054 |
| 4C+E | 25 | 9.1 | 6 | 5.3 | 22.2 | 29.03 | 1499 |
| 4C+E | 35 | 10.3 | 10 | 6.2 | 25.2 | 32.51 | 1987 |
| 4C+E | 50 | 12.3 | 16 | 7.4 | 29.6 | 37.80 | 2766 |
| 4C+E | 70 | 14.0 | 25 | 9.1 | 34.0 | 43.37 | 3877 |
| No.of Cores | Nom. Conductor Area | Core Diameter | Earth Conductor Area | Earth Conductor Diameter | Over Bedding Diameter | Approx.Overall Cable Diameter | Approx.Weight |
|---|---|---|---|---|---|---|---|
| ~ | mm2 | mm | mm2 | mm | mm | mm | KG/KM |
| 3C+E | 1.5 | 3.2 | 1.5 | 3.0 | 8.8 | 12.26 | 201 |
| 3C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.1 | 13.56 | 260 |
| 3C+3E | 4 | 4.7 | 1.5 | 3.0 | 10.4 | 13.89 | 311 |
| 3C+3E | 6 | 5.3 | 1.5 | 3.0 | 11.7 | 15.34 | 393 |
| 3C+3E | 10 | 6.2 | 1.5 | 3.0 | 13.9 | 17.64 | 563 |
| 3C+3E | 16 | 7.4 | 2.5 | 3.5 | 16.4 | 20.34 | 808 |
| 3C+3E | 25 | 9.1 | 4 | 4.1 | 20.3 | 24.53 | 1206 |
| 3C+3E | 35 | 10.3 | 6 | 4.7 | 23.1 | 27.49 | 1608 |
| 3C+3E | 50 | 12.3 | 10 | 5.6 | 27.0 | 31.70 | 2248 |
| 3C+3E | 70 | 14.0 | 10 | 5.6 | 31.4 | 36.84 | 3118 |
| 4C+E | 1.5 | 3.2 | 1.5 | 3.0 | 9.4 | 12.65 | 222 |
| 4C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.5 | 13.89 | 288 |
| 4C+E | 4 | 4.7 | 2.5 | 3.5 | 11.6 | 15.05 | 362 |
| 4C+E | 6 | 5.3 | 2.5 | 3.5 | 12.8 | 16.30 | 455 |
| 4C+E | 10 | 6.2 | 4 | 4.7 | 15.2 | 18.88 | 676 |
| 4C+E | 16 | 7.4 | 6 | 5.3 | 18.0 | 21.95 | 980 |
| 4C+E | 25 | 9.1 | 6 | 5.3 | 21.6 | 25.78 | 1405 |
| 4C+E | 35 | 10.3 | 10 | 6.2 | 24.9 | 29.25 | 1900 |
| 4C+E | 50 | 12.3 | 16 | 7.4 | 28.8 | 33.46 | 2618 |
| 4C+E | 70 | 14.0 | 25 | 9.1 | 33.6 | 38.97 | 3740 |
