Description：

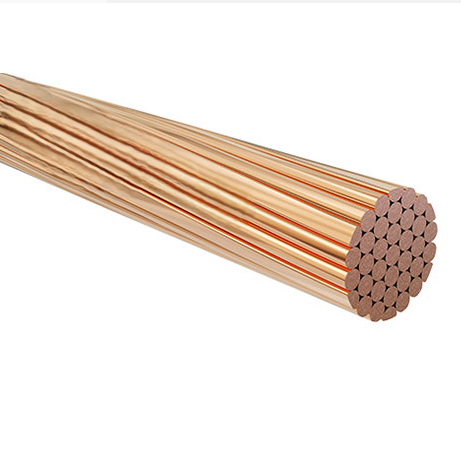

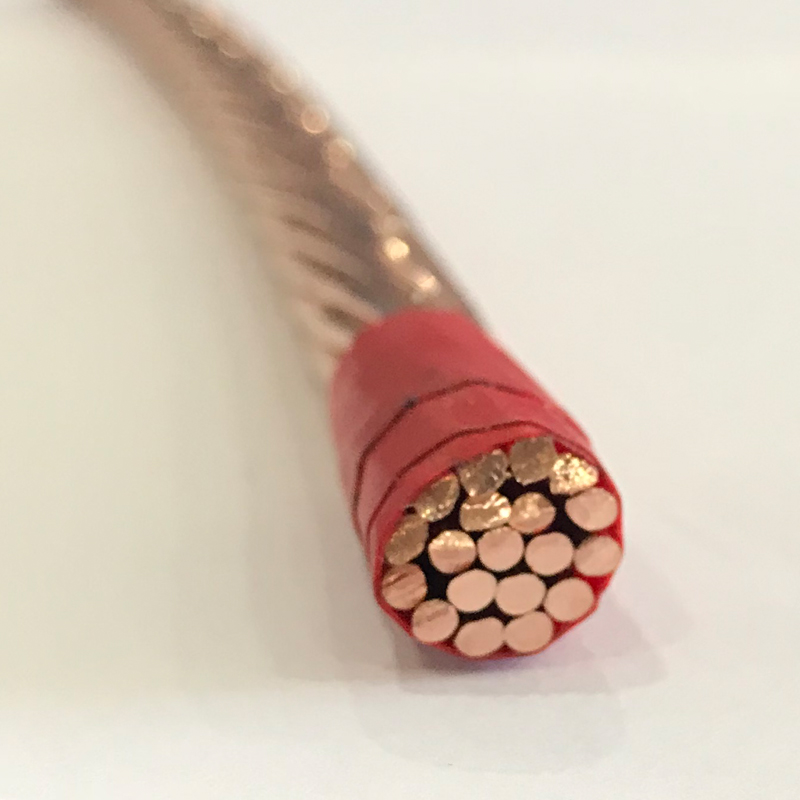

Plain bare hard-drawn or annealed Copper Conductor
Application：
Used in overhead electrical distribution lines, grounding of electrical substations, electrical testing equipment, and various other electrical systems. Also suitable for a wide range of additional applications.
Applicable Standard:
Copper conductors manufactured to AS/NZS 1125 or AS/NZS 1746

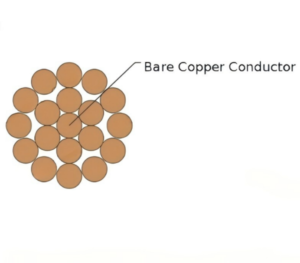

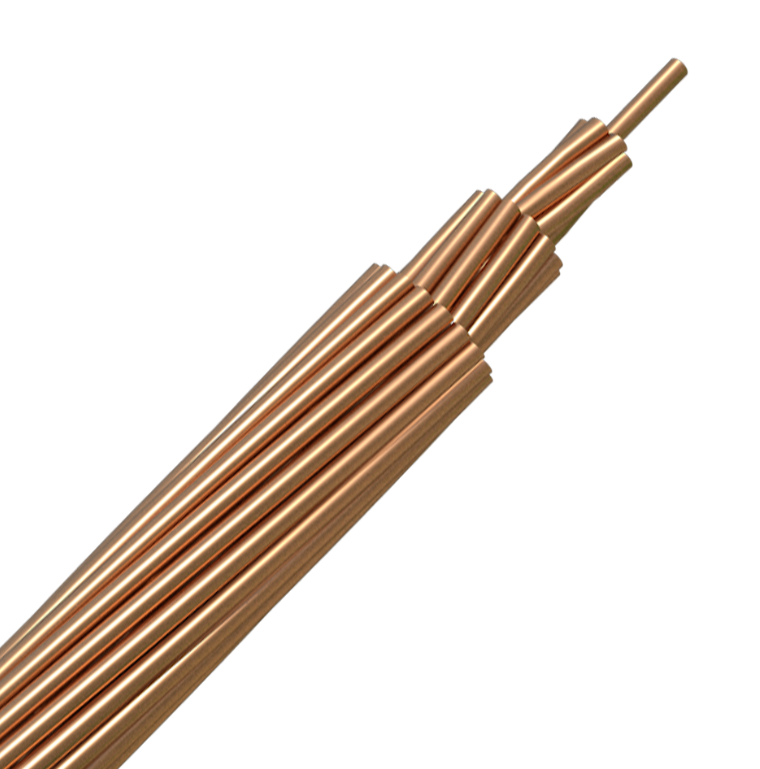

Construction：
Technical parameters:
| Stranding | Nom. Overall Diam. | Cross Section | Approx. Weight | Calculated Breaking Load | Final Modulus of Elasticity | Elongation Coef. |
| No./mm | mm | mm2 | KG/KM | KN | MPA | 10E-6/℃ |
| 7/1.00 | 3.0 | 5.5 | 49.3 | 2.32 | 120000 | 17 |
| 7/1.75 | 5.25 | 16.8 | 151 | 6.89 | 120000 | 17 |
| 7/2.00 | 6.0 | 22 | 197 | 8.89 | 120000 | 17 |
| 7/2.75 | 8.25 | 41.6 | 375 | 16.2 | 120000 | 17 |
| 19/1.75 | 8.75 | 45.7 | 413 | 18.3 | 118000 | 17 |
| 19/2.00 | 10.0 | 59.7 | 538 | 23.6 | 118000 | 17 |
| 7/3.50 | 10.5 | 67.4 | 607 | 25.4 | 120000 | 17 |
| 37/1.75 | 12.3 | 89 | 806 | 35.6 | 117000 | 17 |
| 19/2.75 | 13.8 | 113 | 1020 | 43.1 | 118000 | 17 |
| 19/3.00 | 15.0 | 134 | 1210 | 50.8 | 118000 | 17 |
| 37/2.50 | 17.5 | 182 | 1640 | 70.3 | 117000 | 17 |
| 37/2.75 | 19.3 | 220 | 1990 | 83.9 | 117000 | 17 |
| 37/3.00 | 21.0 | 262 | 2370 | 98.9 | 117000 | 17 |
| 61/2.75 | 24.8 | 362 | 3290 | 138.0 | 117000 | 17 |
| 7/3.75 | 11.3 | 77.3 | 696 | 28.8 | 120000 | 17 |
