Application:
0.6/1KV 4C+E XLPE Circular Orange Cable, primarily applied in buildings and industrial facilities where mechanical damage is not a concern. Compatible with indoor/outdoor deployment, and can be installed in enclosed conduits or underground ducts.

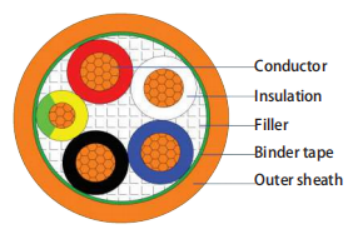

Construction:
Conductor : Class 2 stranded(compacted) copper wire
Insulation : X-90 PVC (Red,Black,Blue,White &G/Y)
Filler: PP rope if needed
Binder tape: Non-hygroscopic woven tape
Outer Sheath : 5V-90 PVC(Orange,other colors available on request)
Technical Parameters：
0.6/1KV 4C+E XLPE Circular Orange Cable
| Nominal Cross Section | Diameter of conductor | Thickness of Insulation | Thickness of sheath | Approx. Overal Dia. | Approx. weight | Conductor Resistance at 20℃ | |||
| Phase | Earth | Phase | Earth | Phase | Earth | ||||
| mm² | mm | mm | mm | mm | mm | mm | kg/m | Ω/km | |
| 4C16+E6 | 5 | 3.09 | 0.7 | 0.7 | 1.8 | 20.4 | 867 | 1.15 | 3.08 |
| 4C25+E6 | 6.1 | 3.09 | 0.9 | 0.7 | 1.8 | 23.7 | 1254 | 0.727 | 3.08 |
| 4C35+E10 | 7.1 | 4.0 | 0.9 | 0.7 | 1.8 | 26.3 1694 | 0.524 1.83 | ||
| 4C50+E16 | 8.4 | 5.0 | 1.0 | 0.7 | 1.9 | 30.3 | 2372 | 0.387 | 1.15 |
| 4C70+E25 | 10 | 6.1 | 1.1 | 0.9 | 2 | 35.3 | 3302 | 0.268 | 0.727 |
| 4C95+E25 | 12.0 | 6.1 | 1.1 | 0.9 | 2.1 | 40.4 | 4322 | 0.193 | 0.727 |
| 4C120+E35 | 13 | 7.1 | 1.2 | 0.9 | 2.3 | 43.8 | 5423 | 0.153 | 0.524 |
| 4C150+E50 | 14.9 | 8.4 | 1.4 | 1.0 | 2.4 | 49.9 | 6855 | 0.124 | 0.387 |
| 4C185+E70 | 16.5 | 10 | 1.6 | 1.1 | 2.6 | 55.6 | 8526 | 0.099 | 0.268 |
| 4C240+E95 | 18.4 | 12.0 | 1.7 | 1.1 | 2.8 | 61.6 | 10975 | 0.075 | 0.193 |
| 4C300+E120 | 21 | 13 | 1.8 | 1.2 | 3.0 | 68.7 | 13661 | 0.0601 | 0.153 |
| 4C400+E120 | 23.4 | 13.0 | 2 | 1.2 | 3.3 | 75.3 | 17591 | 0.0470 | 0.153 |
| 4C500+E120 | 26.6 | 13 | 2.2 | 1.2 | 3.5 | 83.5 | 21612 | 0.0366 | 0.153 |
| 4C630+E120 | 30.0 | 13.0 | 2.4 | 1.2 | 3.8 | 92.2 | 26776 | 0.0283 | 0.153 |
