4C+E SWA XLPE Circular Orange 0.6/1KV

Overview Application Standards Construction Parameters Downloads

Overview

Application

This heavy-duty cable provides a robust solution for demanding power distribution applications. The 0.6/1KV 4C+E SWA XLPE Orange Circular cable is manufactured as per AS/NZS5000.1 and features a CU/XLPE/SWA/PVC structure. Its primary role is low-voltage power distribution where high mechanical protection is required, making it ideal for safely transmitting low-voltage power in environments where the cable must withstand physical stress, be buried, or run in exposed outdoor conditions.

Applicable Standards

AS/NZS1125
AS/NZS3808
AS/NZS5000.1

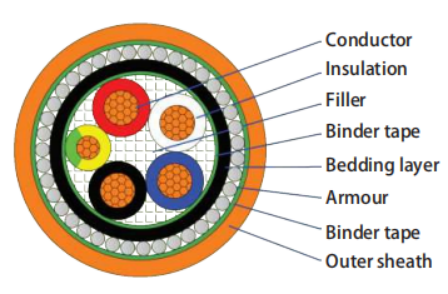

Construction

Conductor: Copper class 2 stranded/compacted as per AS/NZS 1125
Insulation: X-90 as per AS/NZS 3808
Bedding: Extruded PVC
Armour: Galvanized steel wire
Outer Sheath: PVC (5V-90)

Technical Parameters

Nominal Cross Section	Diameter of conductor	Diameter of conductor	Thickness of Insulation	Thickness of Insulation	Dia.of	Thickness	Approx.	Conductor Resistance	Conductor Resistance	Approx
Nominal Cross Section	Diameter of conductor	Diameter of conductor	Thickness of Insulation	Thickness of Insulation	Steel Wire	of Outer	Overall	at 20℃	at 20℃	weight
Nominal Cross Section	Phase	Earth	Phase	Earth	Armour	Sheath	Dia.	Phase	Earth	KG/KM
mm²	mm	mm	mm	mm	mm	mm	mm	Ω/km	Ω/km	kg/m
4C16+E6	5	3.09	0.7	0.7	1.6	1.8	25.6	1.15	3.08	1562
4C25+E6	6.1	3.09	0.9	0.7	1.6	1.8	28.9	0.727	3.08	2061
4C35+E10	7.1	4	0.9	0.7	1.6	1.9	31.7	0.524	1.83	2609
4C50+E16	8.4	5	1	0.7	2	2	36.5	0.387	1.15	3641
4C70+E25	10	6.1	1.1	0.9	2	2.2	42	0.268	0.727	4847
4C95+E25	12	6.1	1.1	0.9	2	2.3	47.1	0.193	0.727	6076
4C120+E35	13	7.1	1.2	0.9	2.5	2.5	52.1	0.153	0.524	7806
4C150+E50	14.9	8.4	1.4	1	2.5	2.7	58.2	0.124	0.387	9575
4C185+E70	16.5	10	1.6	1.1	2.5	2.8	64.1	0.0991	0.268	11603
4C240+E95	18.4	12	1.7	1.1	2.5	3	70.2	0.0754	0.193	14342
4C300+E120	21	13	1.8	1.2	2.5	3.2	77.3	0.0601	0.153	17449

Downloads

Documents & Certifications

Product DatasheetComing soon
