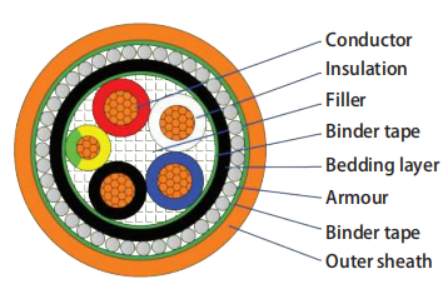

Designed for robust low-voltage power distribution, the 0.6/1KV 4C+E SWA PVC Orange Circular cable is manufactured to AS/NZS5000.1. Its primary role is in applications demanding high mechanical protection, serving as a heavy-duty solution for safely transmitting low-voltage power in environments where the cable must withstand physical stress, be buried directly, or run in exposed outdoor conditions.
| Nom.Cross Section | Diameter of conductor | Diameter of conductor | Thickness of Insulation | Thickness of Insulation | Dia.of Steel Wire Armour | Thickness of Outer Sheath | Aprox. Overall Dia. | Conductor Resistance at 20℃ | Conductor Resistance at 20℃ | Approx. weight |
|---|---|---|---|---|---|---|---|---|---|---|
| Nom.Cross Section | Diameter of conductor | Diameter of conductor | Thickness of Insulation | Thickness of Insulation | Dia.of Steel Wire Armour | Thickness of Outer Sheath | Aprox. Overall Dia. | Conductor Resistance at 20℃ | Conductor Resistance at 20℃ | Approx. weight |
| Nom.Cross Section | Diameter of conductor | Diameter of conductor | Thickness of Insulation | Thickness of Insulation | Dia.of Steel Wire Armour | Thickness of Outer Sheath | Aprox. Overall Dia. | Conductor Resistance at 20℃ | Conductor Resistance at 20℃ | Approx. weight |
| Nom.Cross Section | Phase | Earth | Phase | Earth | Dia.of Steel Wire Armour | Thickness of Outer Sheath | Aprox. Overall Dia. | Phase | Earth | Approx. weight |
| mm² | mm | mm | mm | mm | mm | mm | mm | Ω/km | Ω/km | kg/m |
| 4C1.5+E1.5 | 1.5 | 1.5 | 0.8 | 0.6 | 0.8 | 1.8 | 16 | 13.6 | 13.6 | 440 |
| 4C2.5+E2.5 | 2.01 | 2.01 | 0.8 | 0.7 | 0.8 | 1.8 | 17.4 | 7.41 | 7.41 | 537 |
| 4C4+E2.5 | 2.56 | 2.01 | 1 | 0.7 | 1.25 | 1.8 | 20.4 | 4.61 | 7.41 | 809 |
| 4C6+E2.5 | 3.09 | 2.01 | 1 | 0.7 | 1.25 | 1.8 | 21.5 | 3.08 | 7.41 | 927 |
| 4C10+E4 | 4 | 2.56 | 1 | 1 | 1.6 | 1.8 | 24.8 | 1.83 | 4.61 | 1336 |
| 4C16+E6 | 5 | 3.09 | 1 | 1 | 1.6 | 1.8 | 27.3 | 1.15 | 3.08 | 1710 |
| 4C25+E6 | 6.1 | 3.09 | 1.2 | 1 | 1.6 | 1.8 | 30.5 | 0.727 | 3.08 | 2234 |
| 4C35+E10 | 7.1 | 4 | 1.2 | 1 | 1.6 | 1.9 | 33.4 | 0.524 | 1.83 | 2797 |
| 4C50+E16 | 8.4 | 5 | 1.4 | 1 | 2 | 2.1 | 39.2 | 0.387 | 1.15 | 3986 |
| 4C70+E25 | 10 | 6.1 | 1.4 | 1.2 | 2 | 2.2 | 43.6 | 0.268 | 0.727 | 5100 |
| 4C95+E25 | 12 | 6.1 | 1.6 | 1.2 | 2.5 | 2.4 | 50.8 | 0.193 | 0.727 | 6913 |
| 4C120+E35 | 13 | 7.1 | 1.6 | 1.2 | 2.5 | 2.6 | 54.3 | 0.153 | 0.524 | 8211 |
| 4C150+E50 | 14.9 | 8.4 | 1.8 | 1.4 | 2.5 | 2.7 | 60.4 | 0.124 | 0.387 | 10027 |
| 4C185+E70 | 16.5 | 10 | 2 | 1.4 | 2.5 | 2.9 | 66.4 | 0.0991 | 0.268 | 12141 |
| 4C240+E95 | 18.4 | 12 | 2.2 | 1.6 | 2.5 | 3.1 | 73.1 | 0.0754 | 0.193 | 15099 |
| 4C300+E120 | 21 | 13 | 2.4 | 1.6 | 3.2 | 3.4 | 82.4 | 0.0601 | 0.153 | 19271 |
