Application:
0.6/1KV 2C+E SWA XLPE Orange Circular，manufactured as per AS/NZS5000.1, and its basic structure is CU/XLPE/SWA/PVC. The primary role of this cable is low-voltage power distribution where high mechanical protection is required.It is a heavy-duty solution for safely transmitting low-voltage power in environments where the cable must withstand physical stress, be buried, or run in exposed outdoor conditions.

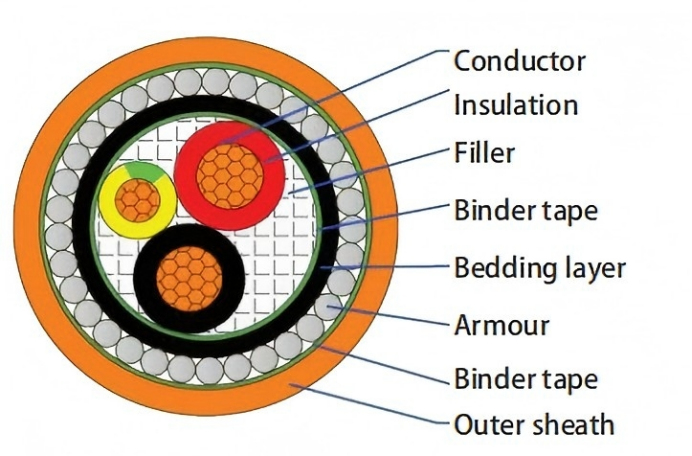

Construction：
Conductor:Copper class 2 stranded /compacted as per AS/NZS 1125
Insulation: X-90 as per AS/NZS 3808
Bedding: Extruded PVC
Armour: Galvanized steel wire
Outer Sheath: PVC (5V-90)
Operating Temperature:90℃
| Nominal Cross Section | Diameter of Conductor | Thickness of Insulation | Dia.ofSteel WireArmour | Thicknessof outersheath | Aprox.OveallDia. | Conductor Resistanceat 20℃ | Approx.weight | |||
| Phase | Earth | Phase | Earth | Phase | Earth | KG/Km | ||||
| mm² | mm | mm | mm | mm | mm | mm | mm | Ω/km | kg/m | |
| 2C16+E6 | 5 | 3.09 | 0.7 | 0.7 | 1.25 | 1.8 | 21.5 | 1.15 | 3.08 | 983 |
| 2C25+E6 | 6.1 | 3.09 | 0.9 | 0.7 | 1.6 | 1.8 | 25.5 | 0.727 | 3.08 | 1421 |
| 2C35+E10 | 7.1 | 4 | 0.9 | 0.7 | 1.6 | 1.8 | 27.3 | 0.524 | 1.83 | 1739 |
| 2C50+E16 | 8.4 | 5 | 1 | 0.7 | 1.6 | 1.9 | 30.5 | 0.387 | 1.15 | 2227 |
| 2C70+E25 | 10 | 6.1 | 1.1 | 0.9 | 2 | 2 | 35 | 0.268 | 0.727 | 3098 |
| 2C95+E25 | 12 | 6.1 | 1.1 | 0.9 | 2 | 2.2 | 41 | 0.193 | 0.727 | 3964 |
| 2C120+E35 | 13 | 7.1 | 1.2 | 0.9 | 2 | 2.3 | 43.4 | 0.153 | 0.524 | 4690 |
