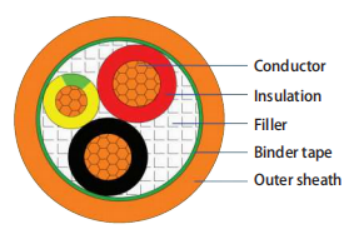

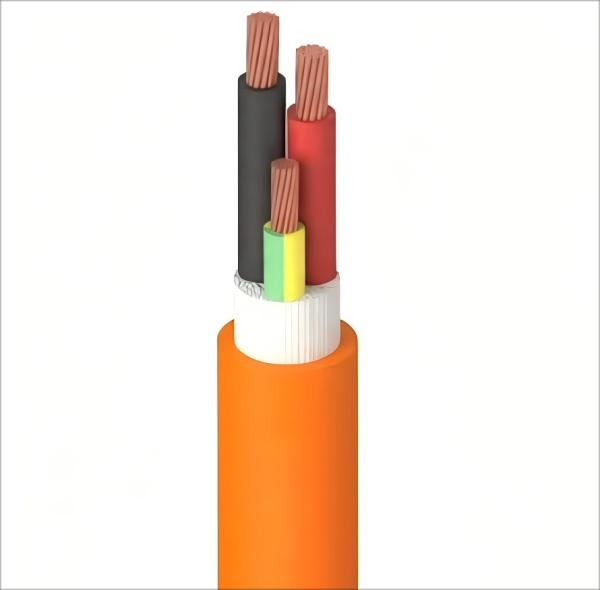

This versatile 0.6/1KV cable is designed for reliable power distribution in various settings. It is primarily applied in buildings and industrial facilities where mechanical damage is not a concern. Compatible with indoor/outdoor deployment, and can be installed in enclosed conduits or underground ducts.
| Nom.Cross Section | Diameter of conductor | Diameter of conductor | Thickness of Insulation | Thickness of Insulation | Thickness of sheath | Approx. overall Dia. | Approx weight | Conducotor Resistance at 20℃ | Conducotor Resistance at 20℃ |
|---|---|---|---|---|---|---|---|---|---|
| Nom.Cross Section | Phase | Earth | Phase | Earth | Thickness of sheath | Approx. overall Dia. | Approx weight | Phase | Earth |
| mm² | mm | mm | mm | mm | mm | mm | kg/m | Ω2/km | Ω2/km |
| 2C2.5+E2.5 | 2.01 | 2.01 | 0.8 | 0.7 | 1.8 | 11.8 | 188 | 7.41 | 7.41 |
| 2C4+E2.5 | 2.56 | 2.01 | 1 | 0.7 | 1.8 | 13.4 | 244 | 4.61 | 7.41 |
| 2C6+E2.5 | 3.09 | 2.01 | 1.0 | 0.7 | 1.8 | 14.4 | 296 | 3.08 | 7.41 |
| 2C10+E4 | 4 | 2.56 | 1 | 1 | 1.8 | 16.3 | 418 | 1.83 | 4.61 |
| 2C16+E6 | 5.0 | 3.09 | 1.0 | 1.0 | 1.8 | 18.3 | 579 | 1.15 | 3.08 |
| 2C25+E6 | 6.1 | 3.09 | 1.2 | 1 | 1.8 | 21.3 | 809 | 0.727 | 3.08 |
| 2C35+E10 | 7.1 | 4.0 | 1.2 | 1.0 | 1.8 | 23.2 | 1063 | 0.524 | 1.83 |
| 2C50+E16 | 8.4 | 5 | 1.4 | 1 | 1.8 | 26.7 | 1474 | 0.387 | 1.15 |
| 2C50+E16 | 10.0 | 6.1 | 1.4 | 1.2 | 1.9 | 30.1 | 2010 | 0.268 | 0.727 |
