| Construction | Type of material | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|---|---|---|
| Construction | Type of material | Design data | Nom. | Nom. | Min. | Min. | Diameter (mm) |
| Conductor | Aluminum, stranded compacted AS PER AS/NZS1125 | Min. number of wires in conductor: | Min. number of wires in conductor: | Min. number of wires in conductor: | Min. number of wires in conductor: | Min. number of wires in conductor: | TBC |
| Insulation | XLPE X-90 | TBC | |||||
| Anti-termite layer | Nylon 12 Black | TBC | |||||
| Over sheath | HDPE, Black with min. 2% carbon black | TBC | |||||

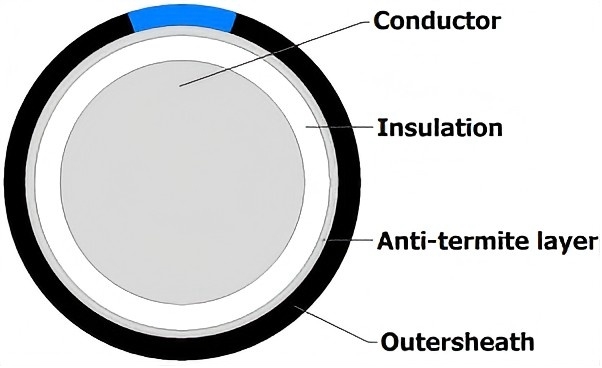

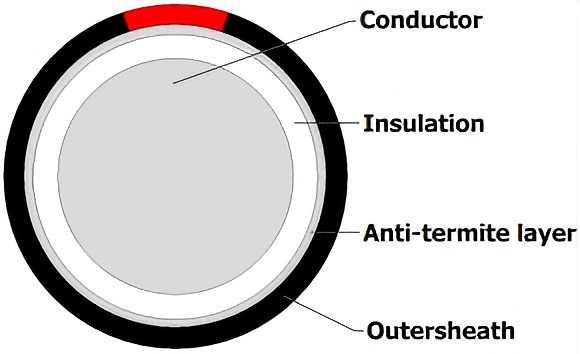

| 1. Cable constructional diagram | 1. Cable constructional diagram | 1. Cable constructional diagram | 1. Cable constructional diagram | 1. Cable constructional diagram | 1. Cable constructional diagram | 1. Cable constructional diagram | 1. Cable constructional diagram |
| ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. | ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. | ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. | ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. | ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. | ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. | ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. | ◆ Core Marking: Nil ◆ Polarity identification: The Negative conductor shall be identified by a continuous BLUE stripe on the black HDPE over sheath. The positive conductor shall be identified by a continuous RED stripe on the black HDPE over sheath. ◆ Cable Marking: < ASP CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/HDPE FOR D.C. USE ONLY. +Meter Marking.> *MM/YYYY = Month/Year of production ◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap. |
