| Construction | Type of material | Thickness (mm) | Diameter(mm) | ||||
| Design data | Nom. | Min. | |||||
| Conductor | Aluminum, stranded compacted AS PER AS/NZS1125 | Min. number of wires in conductor: | TBC | ||||
| Insulation | XLPE X-90 | TBC | |||||
| Anti-termite layer | Nylon 12 Black | TBC | |||||
| Over sheath | XLPO | TBC | |||||
◆ Core Marking: Nil
◆ Polarity identification:

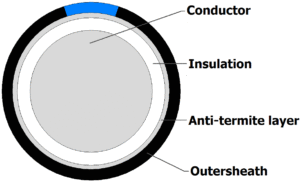

The Negative conductor shall be identified by a continuous BLUE stripe on the black XLPO over sheath.

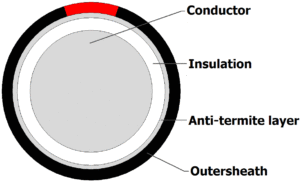

The positive conductor shall be identified by a continuous RED stripe on the black XLPO over sheath.
◆ Cable Marking:
<ASPELECTRIC CABLE DC 1.5/1.5KV 1CXXXXXSQMM AL/X-90/NYLON/XLPO FOR D.C. USE ONLY.
+Meter Marking.> *MM/YYYY = Month/Year of production
◆ Sealing of cable ends: Both ends of the cable shall be sealed with heat shrink end cap.
